KEY FEATURES
4 story sections available. Tab to navigate.
Story section 1 of 4.Contains an image.Press Tab to navigate to next section.
Fully Featured Surround (Section 1 of 4)
The M17 V2i delivers full HDMI video switching, 11.1 balanced outputs, and support for Dolby Atmos, Dolby TrueHD, DTS:X, and DTS-HD Master Audio. Surround formats are automatically detected and decoded using high-resolution, ultra-linear DACs for precise, immersive, and natural sound.
Section 1 of 4
Story section 2 of 4.Contains an image.Press Tab to navigate to next section.

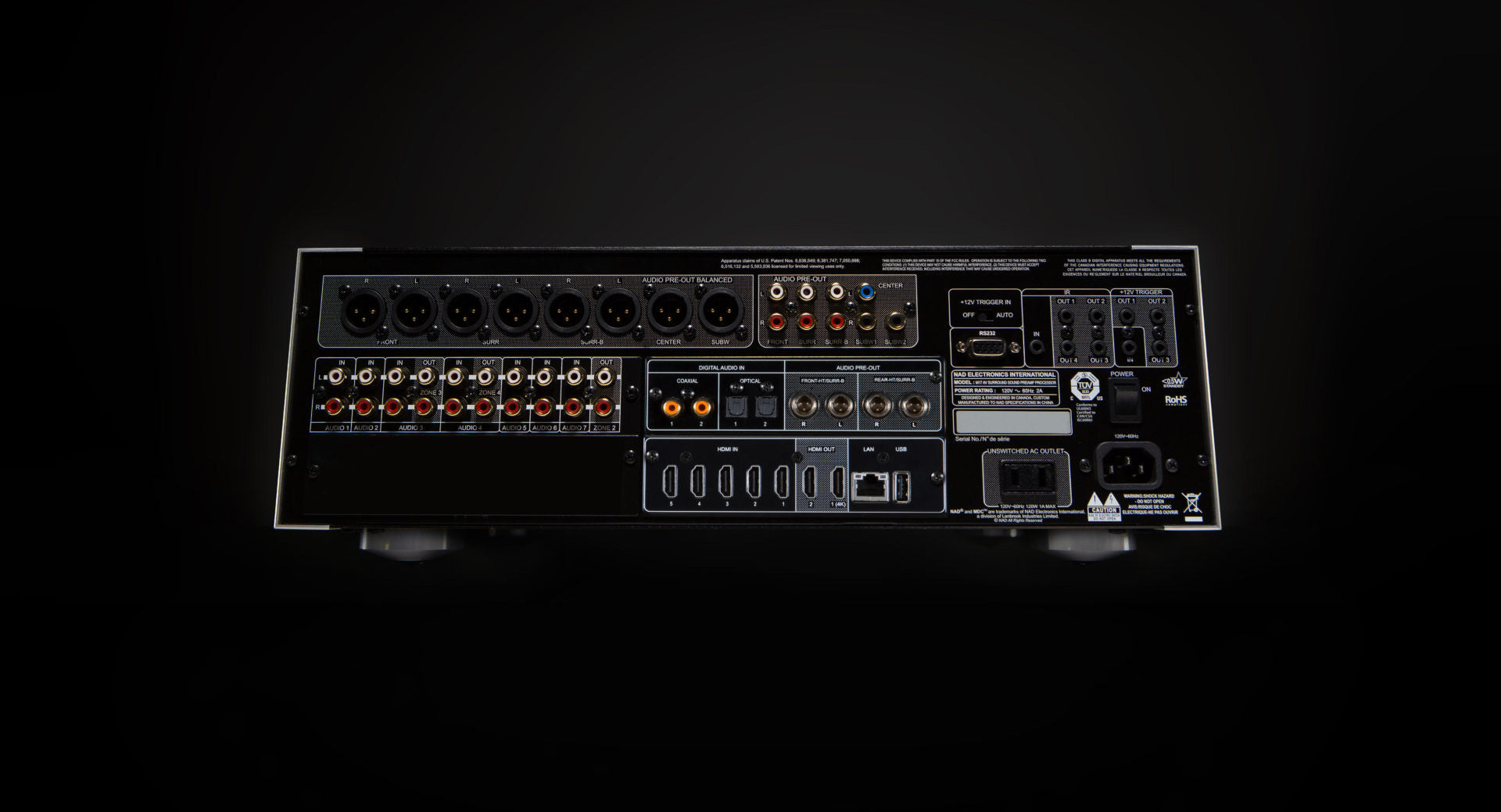

Flexible Setup (Section 2 of 4)

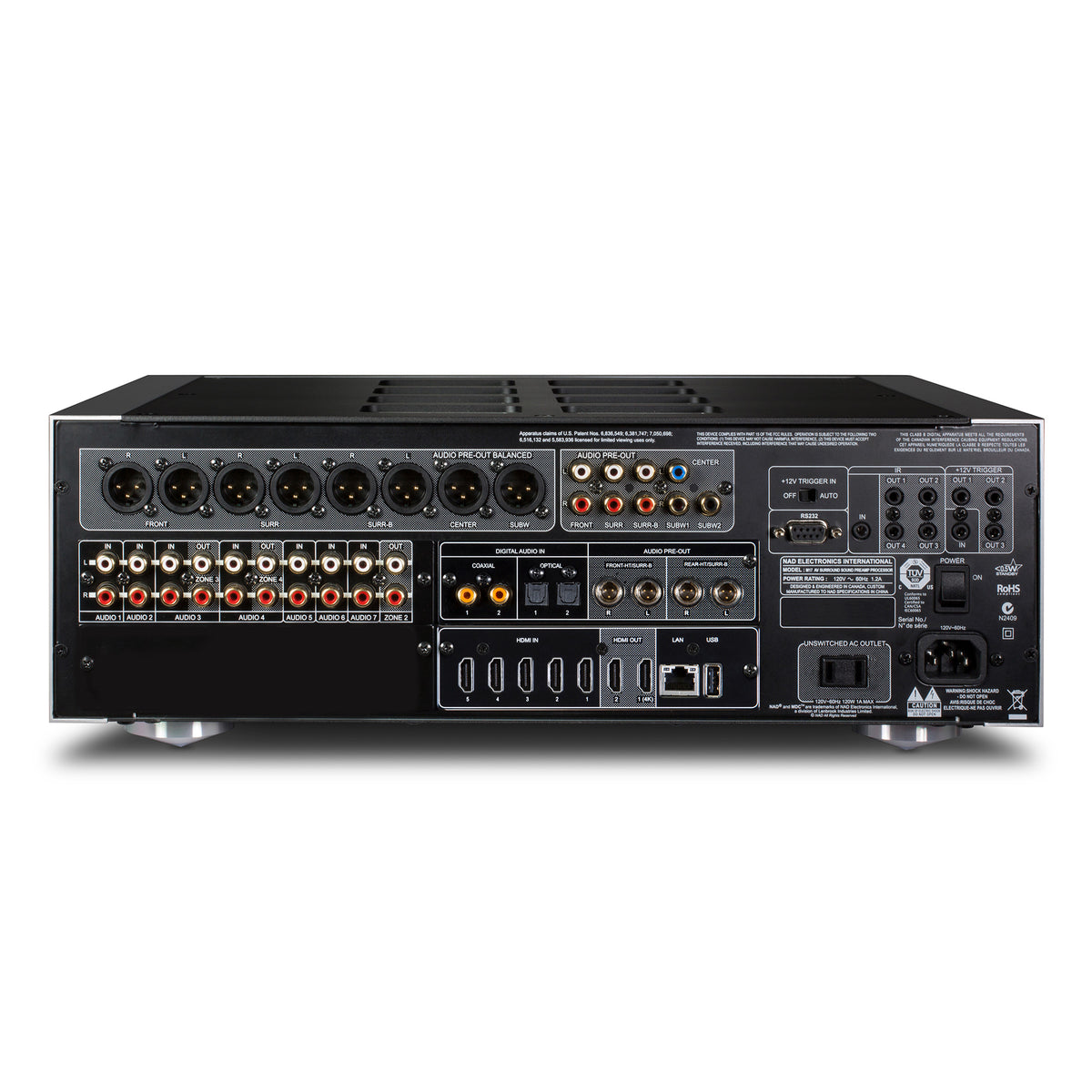

Designed for modern systems, the M17 V2i supports HDR, HDCP 2.2, 4:4:4 colour, and ARC for seamless HDMI integration. Multiple digital inputs, BluOS multi-room capability, IR repeaters, 12V triggers, and RS-232 connectivity allow easy integration into advanced control systems and custom installations.
Section 2 of 4
Story section 3 of 4.Press Tab to navigate to next section.
World’s Most Sophisticated Digital Room Correction (Section 3 of 4)
Dirac Live® Pro is included with a calibrated measurement microphone, allowing precise correction of timing and tonal balance. Advanced users can create custom target curves, fine-tune room response, and use third-party microphones to optimise performance for any listening environment.
Section 3 of 4
Story section 4 of 4.Contains an image.Press Tab to navigate to next section.

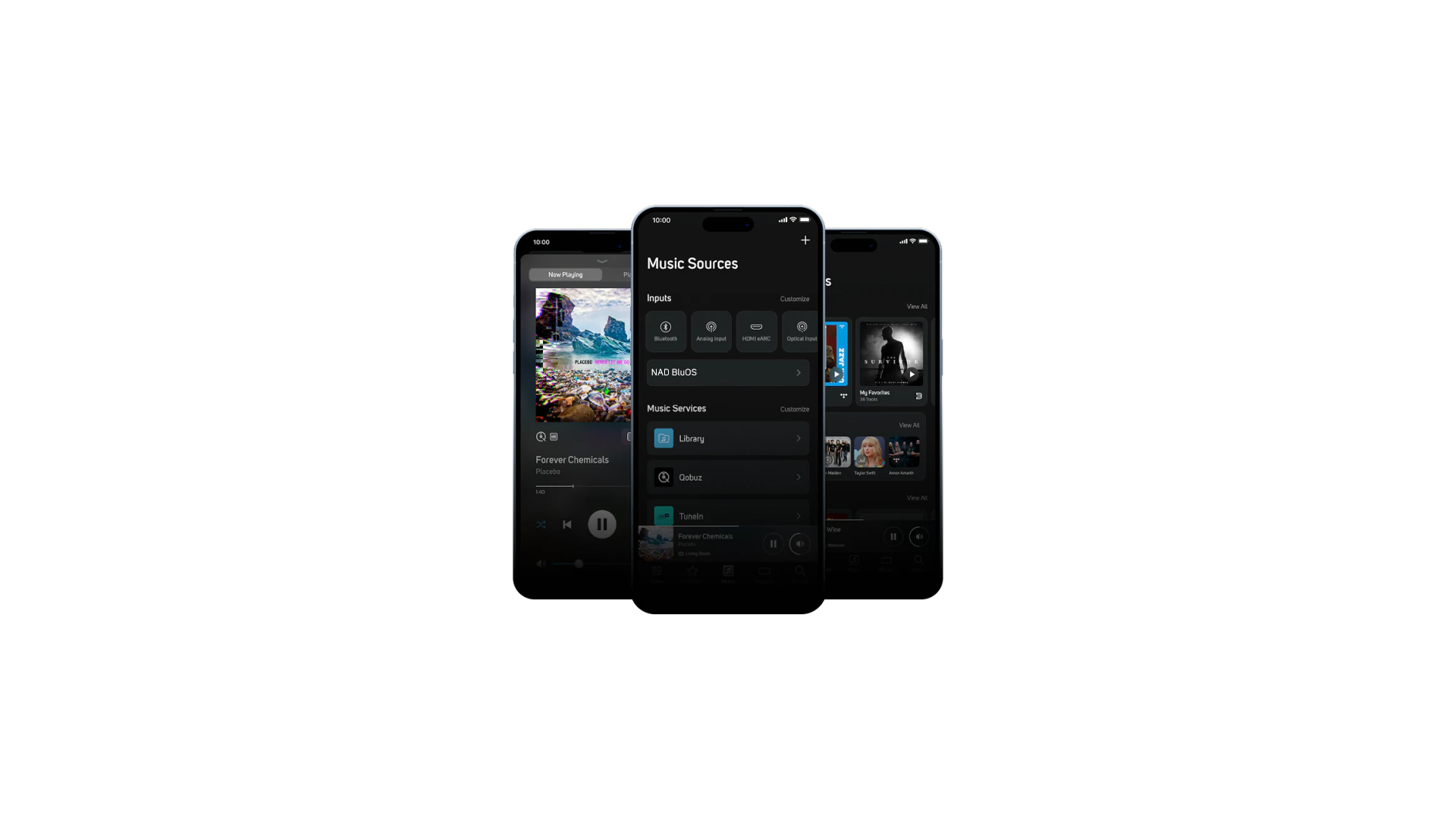

The BluOS Advantage (Section 4 of 4)
BluOS elevates the M17 V2i beyond a traditional AV processor, providing access to thousands of internet radio stations and leading music services including TIDAL, Spotify, and Amazon Music. Combined with MQA support, BluOS delivers high-resolution audio and effortless multi-room control.
Section 4 of 4
SPECIFICATIONS
| Specification | Details |
|---|---|
CONNECTIONS |
|
| HDMI | Up to 4K UHD |
| Coaxial | 0.5 Vpp |
| Ethernet | RJ45 10/100/1000 Ethernet |
| Input Impedance (R and C) | 56kΩ + 220pF |
| Input Sensitivity | 40mV (ref. 500mV out) |
| Maximum Input Signal | >8Vrms |
| Signal/Noise Ratio, A-weighted | >90dB (ref. 500mV in, 500mV out, volume set to unity gain) |
| Channel Separation | >70dB (ref. 1kHz / 10kHz) |
| Frequency Response | ±0.3dB (ref. 20Hz - 20kHz, Tone Active) |
| Frequency Response (subwoofer out) | 10 - 200Hz (ref. -3dB) |
OUTPUT |
|
| Maximum output level | >8 Vrms into 600 Ω |
| THD (CCIF IMD, DIM 100) | <0.005% (ref. 20 Hz - 20 kHz, 2 V out) |
| Output impedance | <100Ω |
| Maximum output level | >4 Vrms into 600 Ω |
| THD (CCIF IMD, DIM 100) | <0.005% (ref. 20 Hz - 20 kHz, 2 V out) |
| Output impedance | <100Ω |
| Treble | ±10dB at 10kHz (ref. 2V in, 2V out) |
| Bass | ±10dB at 100Hz (ref. 2V in, 2V out) |
GENERAL |
|
| Standby power | <0.5W |
| Unit Dimension (WxHxD) - Gross* | 435 x 156 x 386mm |
| Net Weight | 10.9kg (24lb) |
| Shipping Weight | 17.5kg (38.6lb) |
Technology |
|
| *Specifications subject to change without notice. | |
