How Room Correction Works

Dirac Live Room Correction technology works by analyzing the acoustic properties of a room, such as size, shape, and any objects that might affect sound waves. Using a microphone to measure sound output, Dirac Live identifies anomalies and distortions, and then optimizes the sound from your speakers to counteract these irregularities and ensure the best listening experience.

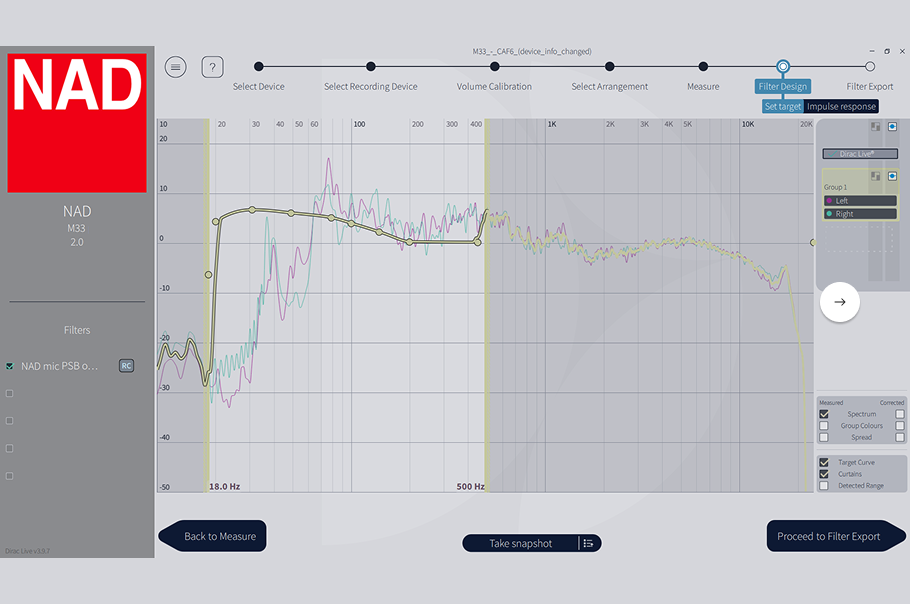

DIRAC LIVE (LIMITED)

Many NAD amplifiers enabled with Dirac include a license for Dirac Live Room Correction Limited, which allows for room correction up to 500Hz. Most issues with room acoustics are in the bass region, and with Dirac Live Limited, you will be able to experience much faster, tighter and controlled bass from your NAD system.

DIRAC LIVE (FULL BANDWIDTH)

Dirac Live Full Bandwidth isn’t limited to 500Hz, and it will analyze the full audio frequency band, not just the bass region. As Dirac also accounts for time alignment and in-band phase shifting, the impulse response will also be greatly improved with enhanced dynamics and a more detailed soundstage. A license for Dirac Live Full Bandwidth is included with select NAD amplifiers.

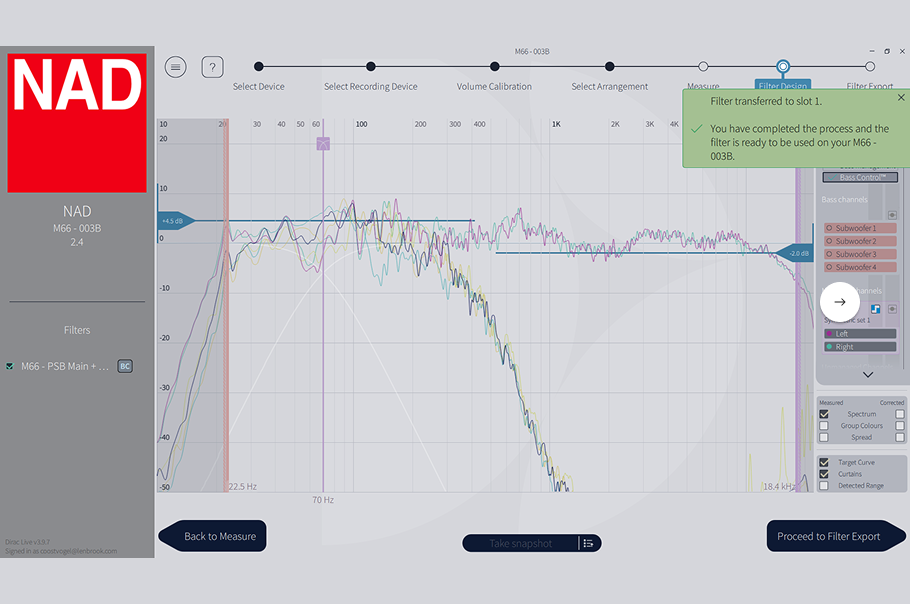

DIRAC LIVE BASS CONTROL (MULTIPLE SUBWOOFER)

Dirac Live Bass Control Multiple Subwoofer adds another dimension to Dirac Live Full Bandwidth. Available in the NAD Masters M66 with four independent subwoofer outputs, Dirac Live Bass Control individually controls each subwoofer and corrects bass characteristics across the listening area, eliminating peaks and dips to create a smoother, more balanced low-end.

PRODUCT UPGRADABILITY

	Dirac Ready	Dirac Live Limited Bandwidth	Dirac Full Bandwidth	Dirac Live Bass Control
M66‡	-	-	✓	✓
C 379*	-	✓	↑	✗
C 389*	-	✓	↑	✗
C 399*	-	✓	↑	✗
C 3050*	-	✓	↑	✗
C 658**	-	✓	↑	↑
T 778	-	✓	↑	✗
M 10 V3**	-	✓	↑	↑
M33 V2**	-	✓	↑	↑
M17 V2i	-	-	✓	✗
M 10 V2**	-	✓	↑	↑
C700	✓	↑	↑	-
C700 V2	✓	↑	↑	-
M33‡	-	✓	↑	↑
C 3050 LE	-	✓	↑	✗
T 175	-	↑	↑	✗
T 187	-	↑	↑	✗
T 757	-	↑	↑	✗
T 758	-	↑	↑	✗
T 758 V3	-	↑	↑	✗
T 765	-	↑	↑	✗
T 775	-	↑	↑	✗
T 777	-	↑	↑	✗
T 785	-	↑	↑	✗
T 787	-	↑	↑	✗
M 10**	-	✓	↑	↑
M15 HD	-	↑	↑	✗
M15 HD2	-	↑	↑	✗
M17	-	↑	↑	✗
M17 V2	-	-	✓	✗
T758V3	-	-	✓	✗
T777V3	-	-	✓	✗
M17V2i	-	-	✓	✗

Show Archive

✓ Included

✗ Not Available

↑ Paid Upgrade

- Not Applicable

‡M66 features Dirac Live Bass Control (Multiple Subwoofers)
*MDC2 BluOS-D card required for C3050, C379, C389, C399 to enable Dirac Live Limited Bandwidth
**Dirac Live Bass Control available via paid upgrade (optional licence) on C658, M10, M10 V2, M10 V3, M33, M33 V2
***Legacy models may require optional upgrade modules (MDC AM230, VM310, BluOS Upgrade Kit, etc.) — contact NAD support for details
Dirac Live Full Bandwidth is available as paid upgrade on all models that support Dirac Live Limited Bandwidth, except models that include it natively (M15 HD, M15 HD2, M17 V2, M17 V2i, M66).
DISCLAIMER - installation of optional modules should be done through a certified NAD dealer or service station.

GETTING STARTED WITH DIRAC LIVE

1: ENSURE THE FIRMWARE FOR YOUR AV RECEIVER OR PROCESSOR IS UP TO DATE

Make sure your unit is running the latest firmware in order to start your DIRAC setup. See how to upgrade your firmware.*

Alternatively, on comparable BluOS devices you may download the BluOS Desktop App and follow the on-screen prompts to add your AVR as a player. Once completed, the app will automatically begin installation of the latest firmware.*

For manual installation of the upgrade, please follow the instructions on this support article or email support@nadelectronics.com for further assistance.

MOBILE AND TABLET APPS

DESKTOP APPS

2: SOFTWARE DOWNLOAD

Download the latest version of Dirac Live here

If you are still on older Dirac versions, please upgrade to latest version for full functionality and access to Dirac Live licenses (Lite; full; Bass Control single sub; Bass Conrtrol Multiple subs) that come with your NAD (pre-)amplifier or receiver.
