POWER WITH CONTROL AND PRECISION (Section 1 of 5)
The M10 V3 uses a HybridDigital amplifier based on nCore Class D technology to deliver 100W per channel with low distortion and stable control over your speakers. It remains
consistent across a wide range of speakers and listening levels, maintaining the balance and dynamic shape of the music. From quieter passages to higher output, the presentation stays composed, with detail and dynamics preserved.
Section 1 of 5
Story section 2 of 5.Contains an image.Press Tab to navigate to next section.
A SYSTEM THAT ADAPTS WITH YOU (Section 2 of 5)
The M10 V3 is designed to integrate easily into both stereo and surround configurations. It supports wireless Dolby Digital setups with BluOS-enabled rear channels and dual subwoofers, allowing the system to expand without losing consistency across the system. Whether used as a compact two-channel setup or as part of a larger configuration, performance remains balanced and controlled.
Section 2 of 5
Story section 3 of 5.Contains an image.Press Tab to navigate to next section.
RESOLUTION WITHOUT COMPLEXITY (Section 3 of 5)
The latest-generation ESS Sabre DAC retrieves fine detail and subtle dynamic contrasts from both digital and analogue sources. High-resolution streaming, full MQA decoding, and a dedicated MM phono stage ensure each source is handled with care and accuracy. The result is a system that remains simple to use, while preserving the character and nuance of the original recording.
Section 3 of 5
Story section 4 of 5.Contains an image.Press Tab to navigate to next section.
CALIBRATED FOR YOUR ROOM (Section 4 of 5)
Dirac Live Room Correction adjusts the output of the M10 V3 to suit your listening space. By addressing room-induced effects, it improves clarity, low-frequency control, and tonal balance. Instruments and voices are presented with greater definition, and the sense of space remains stable across different listening positions.
Section 4 of 5
Story section 5 of 5.Press Tab to navigate to next section.
DESIGN THAT CONNECTS YOU TO THE MUSIC (Section 5 of 5)

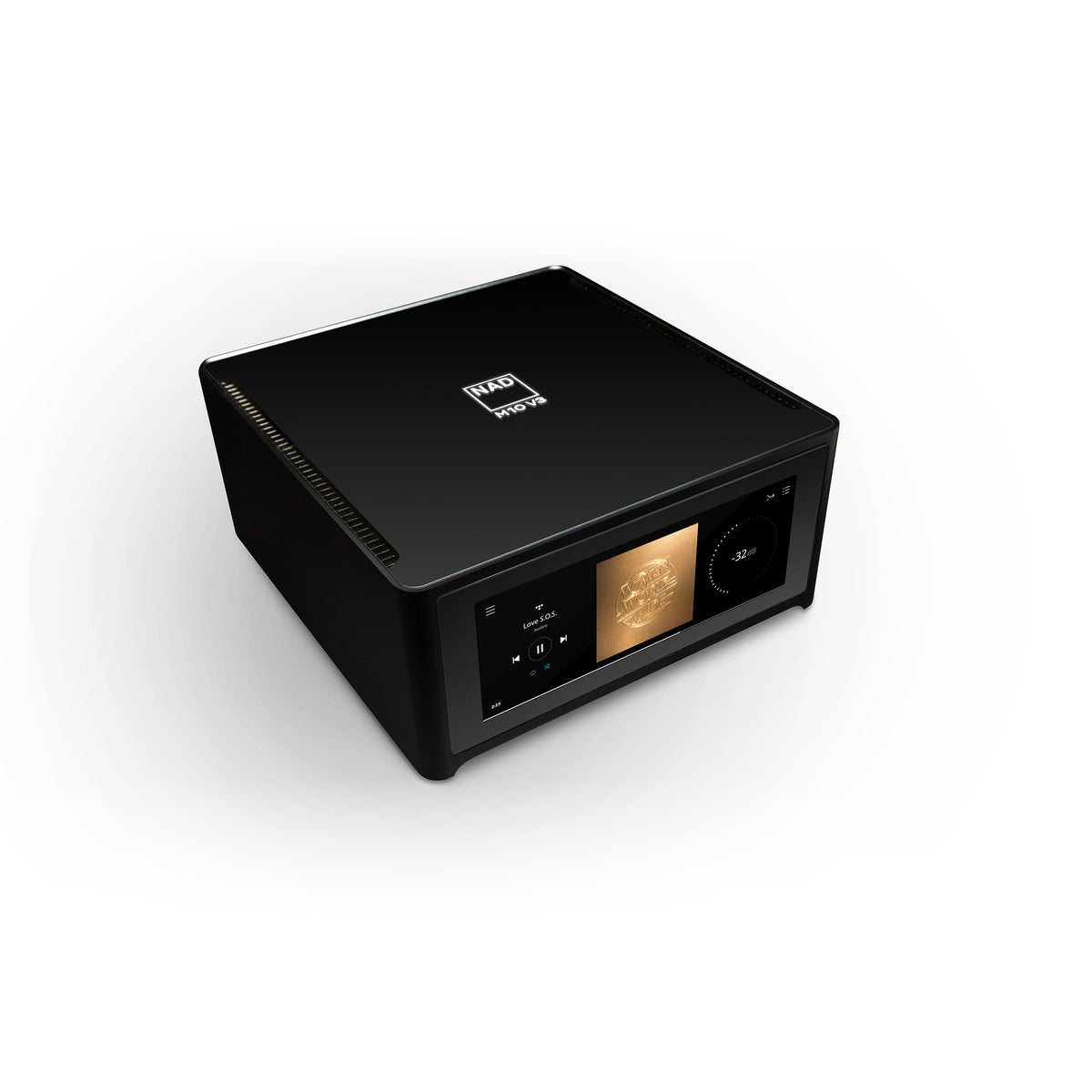

The M10 V3 combines a compact aluminium chassis with Gorilla Glass panels and a high-resolution touchscreen display. Album artwork and system information are presented clearly, creating a more direct connection to what you are listening to. Control is available through the BluOS Controller App, touchscreen, voice, or remote, allowing you to navigate your music easily while keeping the focus on the listening experience.
Section 5 of 5
SPECIFICATIONS
| Specification | Details |
|---|---|
GENERAL SPECIFICATIONS |
|
| Continuous output power into 8 ohms and 4 ohms | >100W (ref. 20 Hz-20 kHz at rated THD, both channels driven) |
| THD (20 Hz – 20 kHz) | <0.03 % (250 mW to 100 W, 8 ohms and 4 ohms) |
| Signal-to-Noise Ratio | >85.1 dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms) |
| Clipping power | >130 W (at 1 kHz 8 ohms 0.1 % THD) >230 W (at 1 kHz 4 ohms 0.1 % THD) |
| IHF dynamic power | 8 ohms: 160 W 4 ohms: 300 W |
| Damping factor | >190 (ref. 8 ohms, 20Hz to 6.5kHz) |
| Frequency response | ±0.6 dB (20 Hz - 20 kHz) |
| Tone controls | Treble: ±6.0 dB at 20 kHz Bass: ±6.0dB at 60 Hz |
| Channel separation | >83 dB (1 kHz) >70.5 dB (10 kHz) |
| Input sensitivity (for 100 W in 8 ohms) | Line In: 456 mV Digital In: -13.23 %FS |
| Standby power | 0.5W |
DAC SECTION |
|
| Supported audio file formats | MP3, AAC, WMA, OGG, WMA-L, ALAC, OPUS |
| Hi-Resolution audio formats | MQA, FLAC, WAV, AIFF, Supports converted DSD playback via the BluOS desktop app (only) |
| Sampling rate | up to 24 bit/192 kHz |
BluOS SECTION |
|
| Supported operating systems | Plays music from network shares on the following desktop operating systems: Microsoft Operating Systems and Mac OS X versions |
| User interface mobile operating system BluOS | BluOS - Free Android and iOS App available online at Google Play and Apple App store |
| Supported cloud services* | Amazon Music Ultra HD, Spotify (also support for Spotify Lossless), Tidal Max, Deezer, Qobuz, Qobuz Connect, HDtracks, HighResAudio, Murfie, JUKE, Napster, Slacker Radio, KKBox, Bugs |
| Free internet radio* | TuneIn Radio, iHeartRadio, Calm Radio, Radio Paradise |
| Bluetooth quality | Bluetooth aptX HD built-in |
| Bluetooth connectivity | Two-Way (Receive and Headphone modes) |
| Network connectivity | Gigabit Ethernet RJ45, Wi-Fi 5 |
DIMENSION AND WEIGHT |
|
| Gross dimensions | 215 x 100 x 260 mm 8 1/2 x 3 15/16 x 10 1/4 inches |
| Shipping weight | 5 kg (11 lbs) |
NOTE |
|
| *Specifications subject to change without notice. | |
