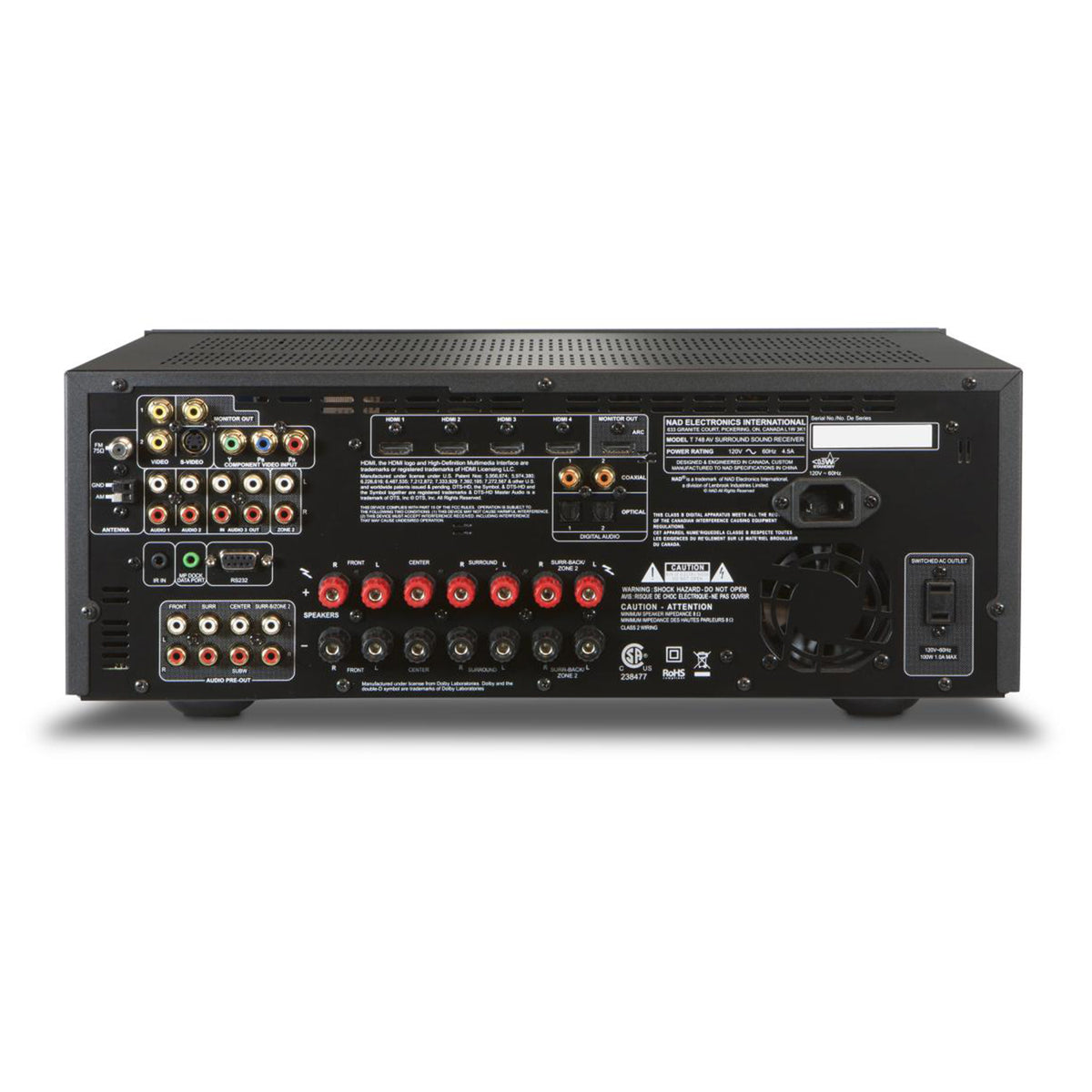

T 748 v2
A/V SURROUND SOUND RECEIVER
SPECIFICATIONS
| Specification | Details |
|---|---|
Amplifier |
|
| FTC | 2 x 80W |
| Full Disclosure Power (all channels driven simultaneously) | 7 x 40W |
| 8 Ohms | 2 x 110W |
| 4 Ohms | 2 x 160W |
| Total Harmonic Distortion at rated power | <0.08% |
| IM distortion at rated power | <0.08% |
| Damping Factor, 8 ohms | >60 |
| Input Sensitivity and Impedance | 250mV / 47 kilohms |
| Frequency Response | ±0.5dB (ref. 1kHz, 20Hz-20kHz) |
| Signal/Noise Ratio | >100dB (ref. rated power at 8 Ohms, A-Weighted) |
Tuner |
|
| Tuning Range | 520kHz - 1710kHz (120V version, 10kHz steps) |
| Usable Sensitivity | 60dBμV |
| Signal/Noise Ratio | 40dB |
| Total Harmonic Distortion | <1.5% |
| Loop Sensitivity 20dB S/N | 60dBμV |
| Tuning Range | 87.50MHz - 108.00MHz |
| Usable Sensitivity Mono | <10dBμV |
| Mono | 65dB |
| Stereo | 60dB |
| Mono | 0.25% |
| Stereo | 0.5%/li> |
| Channel Separation | 30dBμV |
| RDS Decode Sensitivity | 28dBμV |
General |
|
| Idle Power | 50W |
| Standby power | <0.5W |
| Unit Dimension (WxHxD) - Gross* (includes feet, knobs and terminals) | 435 x 167 x 397mm |
| Net weight | 11.5kg (25.3lb) |
| Shipping weight | 14.0kg (30lb) |
Accessories |
|
Technology |
|
| *Specifications subject to change without notice. | |
