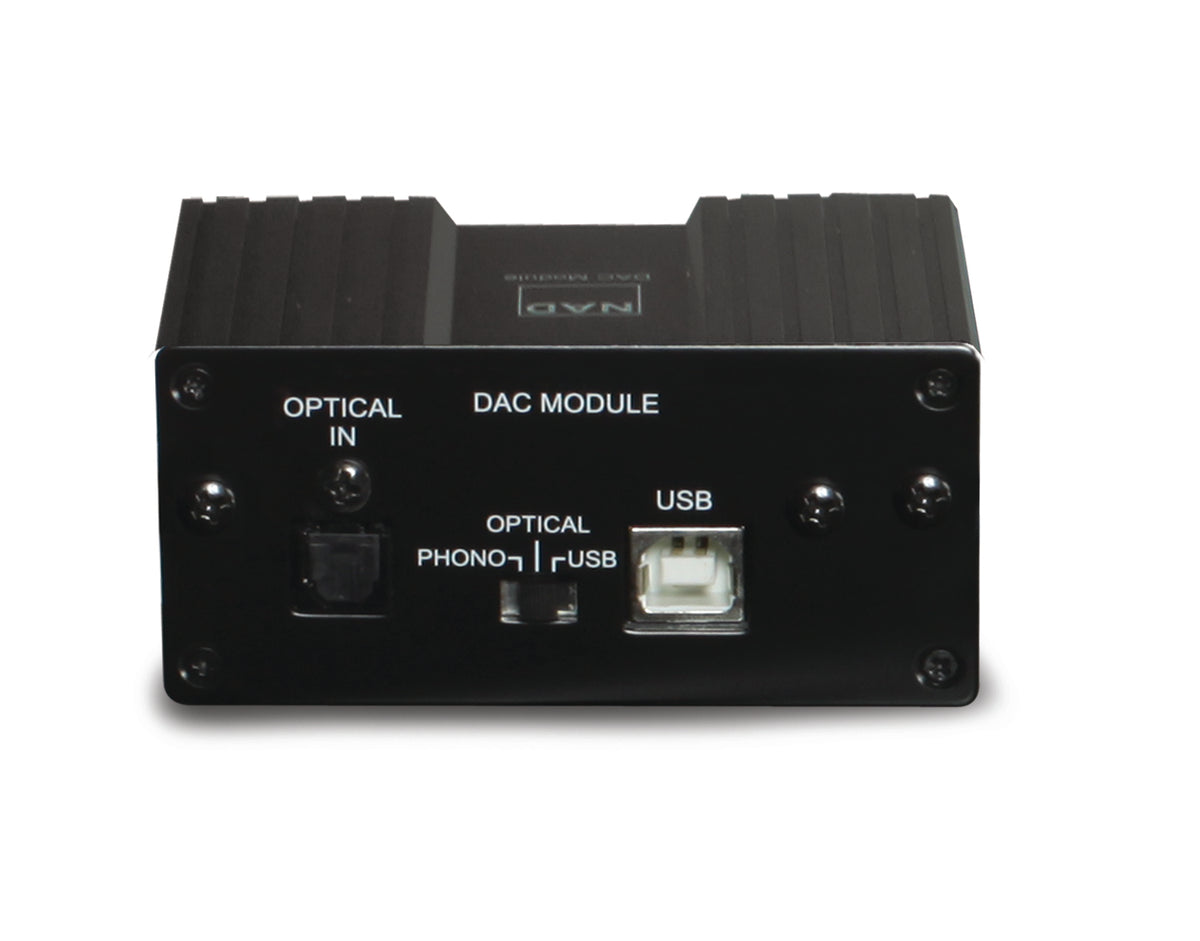

MDC DAC 2.0
MDC MODULE
SPECIFICATIONS
| Specification | Details |
|---|---|
Inputs |
|
| Digital | Optical USB (Device side Asynchronous) |
Specifications |
|
| Sample Rate | Optical 32kHz - 192kHz USB 32kHz - 192kHz |
| Frequency Response | Optical 20Hz - 40kHz ±0.2dB USB 20Hz - 20kHz ±0.2dB |
| THD+N | 0.005% (ref 0dBFS) |
| Signal to Noise | >-100dB (ref. 0dBFS input) |
| Analogue Output Level | 2Vrms (ref. 0dBFS input) |
| Digital-to-Analogue Converter | Cirrus Logic CS4398 |
Weight & Dimensions |
|
| Unit Gross Dimensions* (W x H x D) | 83 x 38 x 75.2mm (3 1/4 x 1 1/2 x 3”)** |
| Net Weight | 0.18kg (0.40lb) |
| Shipping Weight | 0.34kg (0.75lb) |
Technology |
|
| *Specifications subject to change without notice. | |
