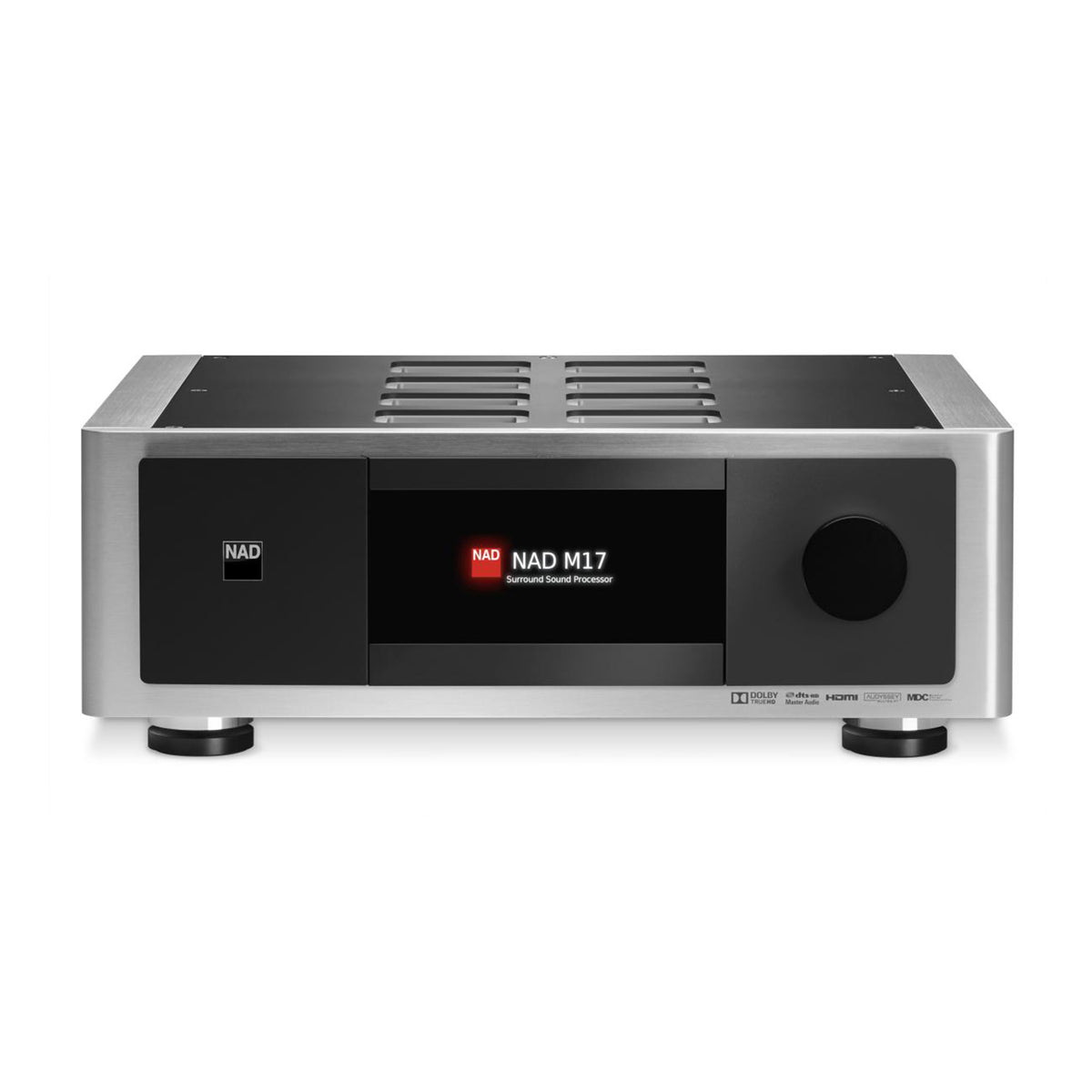

M17
AV SURROUND SOUND PREAMP PROCESSOR
SPECIFICATIONS
| Specification | Details |
|---|---|
Connections |
|
| HDMI | Up to 1080p |
| Optical | 3 Vpp |
| Coaxial | 0.5 Vpp |
| Ethernet | RJ45 10/100 Ethernet Tx |
| Input Impedance (R and C) | 56kilohm + 220pF |
| Input Sensitivity | 40mV (ref. 500mV out) |
| Maximum Input Signal | >8Vrms |
| Signal/Noise Ratio, A-weighted | >90dB (ref. 500mV in, 500mV out, volume set to unity gain) |
| Channel Separation | >70dB (ref. 1kHz / 10kHz) |
| Frequency Response | ±0.3dB (ref. 20Hz - 20kHz, Tone Active) |
| Frequency Response (subwoofer out) | 10 - 200Hz (ref. -3dB) |
| XLR | >2Vrms |
| Maximum output level | >8Vrms into 600 Ohms |
| THD (CCIF IMD, DIM 100) | <0.005% (ref. 20Hz - 20kHz, 2V out) |
| Tone Controls Treble | ±10dB at 10kHz (ref. 2V in, 2V out) |
| Bass | ±10dB at 100kHz (ref. 2V in, 2V out) |
General |
|
| Standby power | <0.5W |
| Unit Dimension (WxHxD) - Gross* | 435 x 156 x 386mm |
| Net weight | 10.9kg (24lb) |
| Shipping weight | 17.5kg (38.6lb) |
Technology |
|
| *Specifications subject to change without notice. | |
