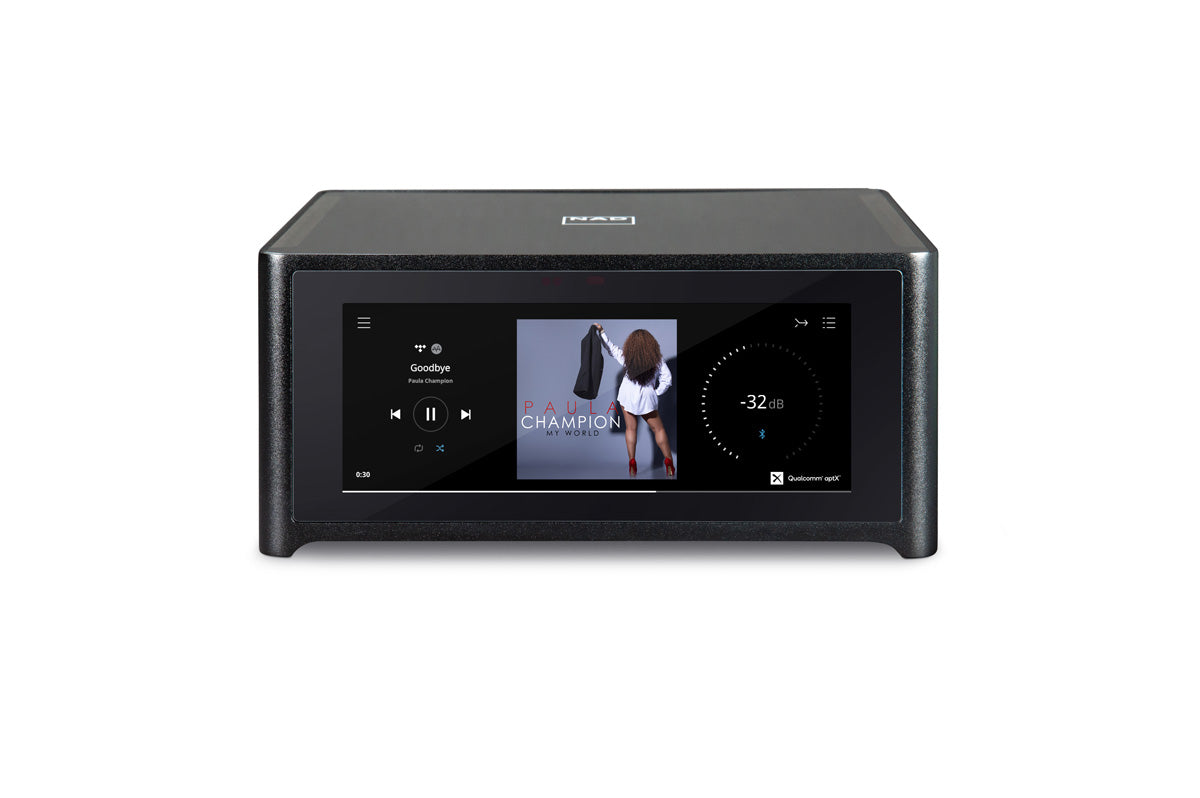

M10
BLUOS STREAMING AMPLIFIER
SPECIFICATIONS
| Specification | Details |
|---|---|
AMPLIFIER SECTION |
|
| Continuous output power into 8 ohms and 4 ohms | >100W (ref. 20 Hz-20 kHz at rated THD, both channels driven) |
| THD (20 Hz – 20 kHz) | <0.03 % (250 mW to 100 W, 8 ohms and 4 ohms) |
| Signal-to-Noise Ratio | >90 dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms) |
| Clipping power | >130 W (at 1 kHz 8 ohms 0.1 % THD) >230 W (at 1 kHz 4 ohms 0.1 % THD) |
| IHF dynamic power | 8 ohms: 160 W 4 ohms: 300 W |
| Damping factor | >190 (ref. 8 ohms, 20Hz to 6.5kHz) |
| Frequency response | ±0.6 dB (20 Hz - 20 kHz) |
| Tone controls | Treble: ±6.0 dB at 20 kHz Bass: ±6.0dB at 60 Hz |
| Channel separation | >75 dB (1 kHz) >70 dB (10 kHz) |
| Input sensitivity (for 100 W in 8 ohms) | Line In: 1.0 V Digital In: -6.2 %FS |
| Standby power | 0.5W |
DAC SECTION |
|
| Supported audio file formats | MP3, AAC, WMA, OGG, WMA-L, ALAC, OPUS |
| Hi-Resolution audio formats | MQA, FLAC, WAV, AIFF, Supports converted DSD playback via the BluOS desktop app (only) |
| Sampling rate | up to 32 bit/192 kHz PCM |
| Bit depths | 16 – 24 |
BluOS SECTION |
|
| Supported operating systems | Plays music from network shares on the following desktop operating systems: Microsoft Windows XP, 2000, Vista, 7, 8 to current Windows Operating Systems and Mac OS X versions |
| User interface mobile operating system BluOS | BluOS - Free Android and iOS App available online at Google Play and Apple App store |
| Supported cloud services* | Amazon Alexa, Amazon Music, Spotify (also support for Spotify Lossless), TIDAL, Deezer, Qobuz, HDTracks, HighResAudio, Murfie, JUKE, Napster, Slacker Radio, KKBox, Bugs |
| Free internet radio* | TuneIn Radio, iHeartRadio, Calm Radio, Radio Paradise |
| Bluetooth quality | Bluetooth aptX HD built-in |
| Bluetooth connectivity | Two-Way (Receive and Headphone modes) |
| Network connectivity | Gigabit Ethernet RJ45, Wi-Fi 5 |
DIMENSION AND WEIGHT |
|
| Gross dimensions | 215 x 100 x 260 mm 8 1/2 x 3 15/16 x 10 1/4 inches |
| Shipping weight | 5 kg (11 lbs) |
NOTE |
|
| *Specifications subject to change without notice. | |
