CS1
ENDPOINT NETWORK STREAMER
- Regular Price
- $379.00
Sold Out
SPECIFICATIONS
| Specification | Details |
|---|---|
AUDIO |
|
| THD + N (20 Hz – 20 kHz) | <0.03% 20-20 kHz -1dBFS output |
| Signal-to-Noise ratio | -94dB (ref 2V) |
| Frequency response | 20-20 kHz +/-0.3dB; 50 kHz -3dB |
| Native sampling rate | Up to 192 kHz |
| Bit depth | 16-24 |
| Supported audio file format | LPCM, MP3, AC3, Ogg Vorbis, HE-AAC, MQA & WMA decode capability |
| Supported 3rd party service provider | Spotify Connect (also support for Spotify Lossless), Tidal Connect, Qobuz Connect, Apple AirPlay 2, Google Chromecast, DLNA, Roon |
| DAC | TI PCM5142 |
| Processor | ARM® Cortex™ -A53, Quad-Core, 1.5GHz per core |

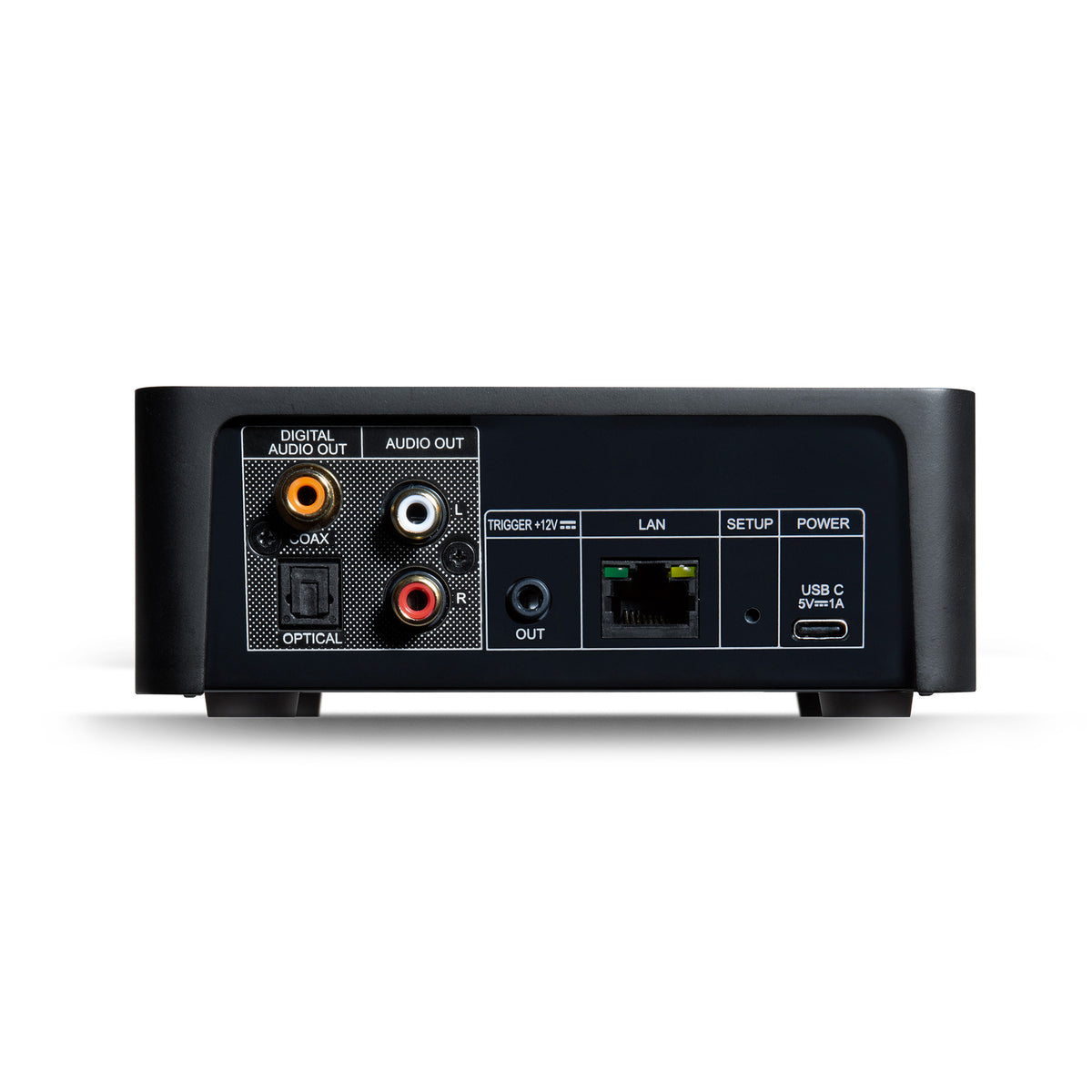

CONNECTIONS |
|
| Power | AC adapter Input: 100-240V AC 0.3A Output: 5V DC 1A |
| Network connectivity | Ethernet RJ45 100 Mbps Wi-Fi 5 (802.11ac 2.4GHz/5 GHz) DLNA/UPnp* |
| Bluetooth | Bluetooth 5.2 BT Profiles: A2DP 1.2, AVRCP 1.3, SPP, HFP, HSP, HOGP |
| NFC | NFC for easy Bluetooth connection |
| 12V Trigger Out | 3.5mm Mini-jack x 1 |
| Analog Out | RCA x 1 |
| Coaxial Out | RCA 75 ohms |
| Optical Out | TOSLINK x 1 |
| USB IN | USB C for AC adapter |
GENERAL |
|
| Status Indicator | Front Panel LED |
| Function Button | Front Panel Function Button |
| Power Consumption | 0.5W Network Standby |
| Finish | Black |
DIMENSION AND WEIGHT |
|
| Gross dimensions (W x H x D)** | 140 x 140 x 55 mm (5 1/2 x 5 1/2 x 2 1/16 inches) |
| Net Weight | 1.5 kgs / 3.3 lbs |
| Shipping Weight | 1.7 kgs / 3.8 lbs |
| *Specifications subject to change without notice. | |
Visit an authorised NAD dealer to experience our products and hear the difference for yourself.
