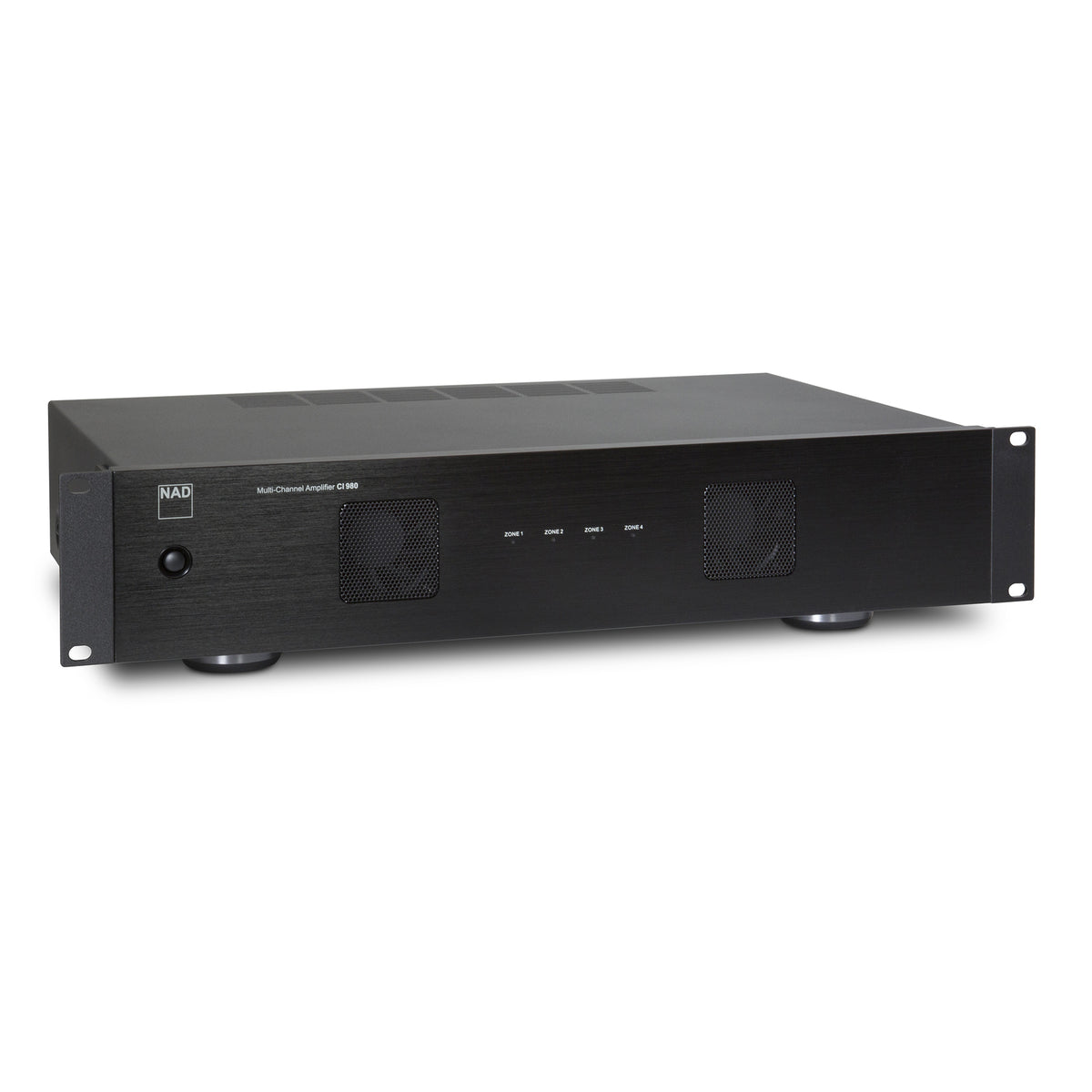

CI 980
MULTI-CHANNEL POWER AMPLIFIER
SPECIFICATIONS
| Specification | Details |
|---|---|
Key Features |
|
| Eight channels of clean, low distortion power set up in four stereo zone configuration | 50W x 8 @ 8 Ohms; 60W x 8 @ 4 Ohms; 120W @ 8 Ohms in Bridge Mode |

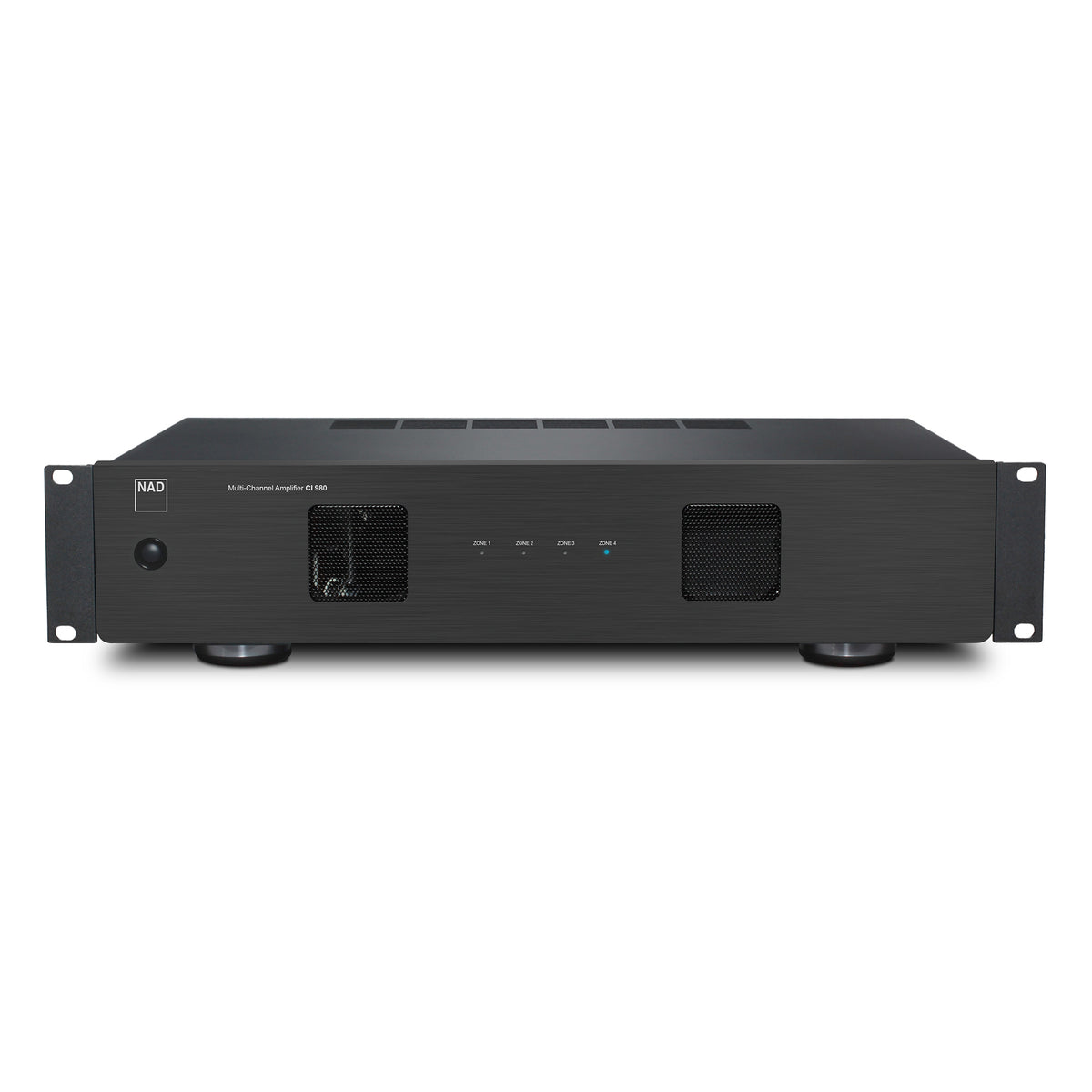

| Universal voltage to accommodate marine or avionics installations | Compact 2U rack height with rack ears |

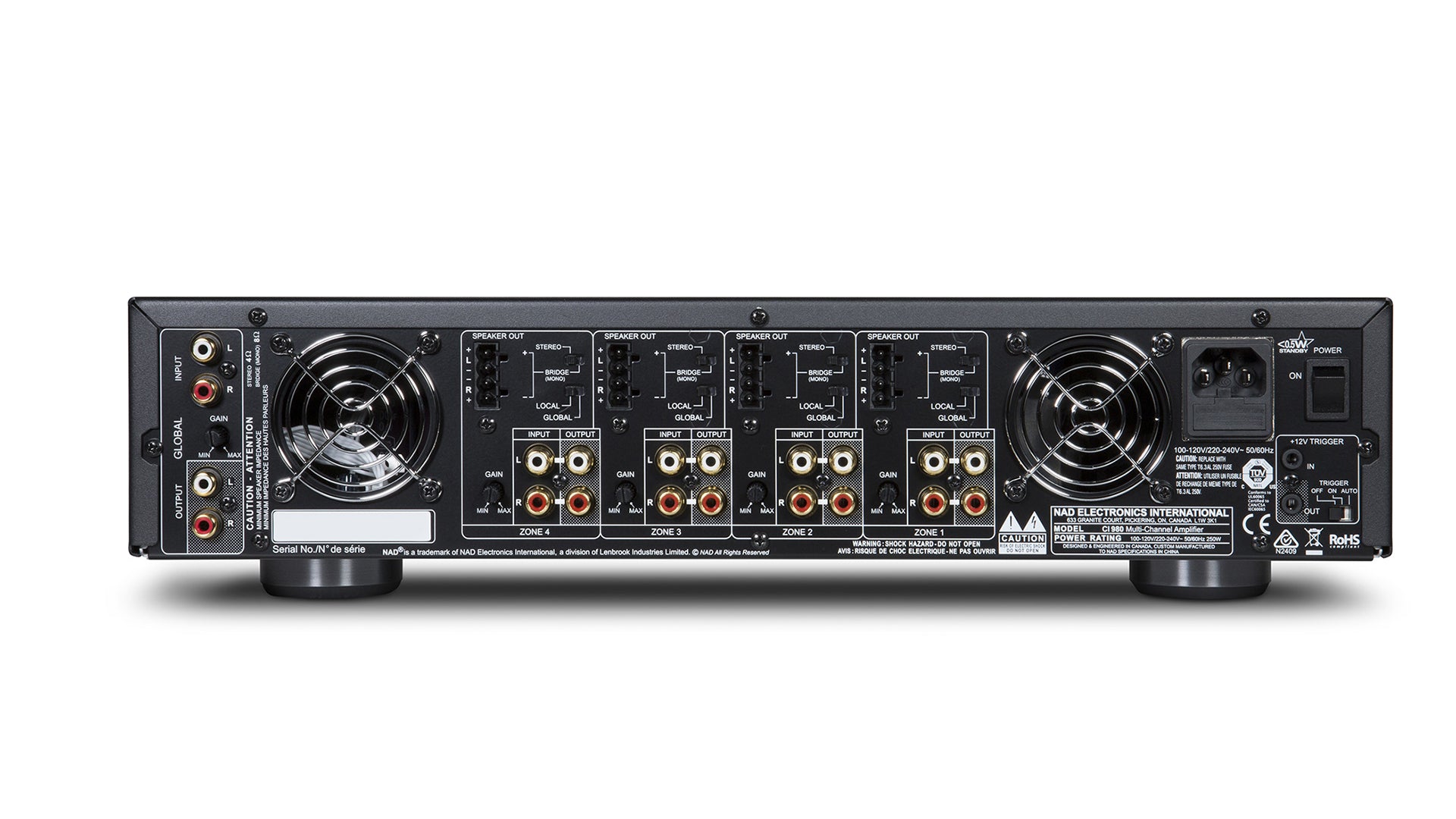

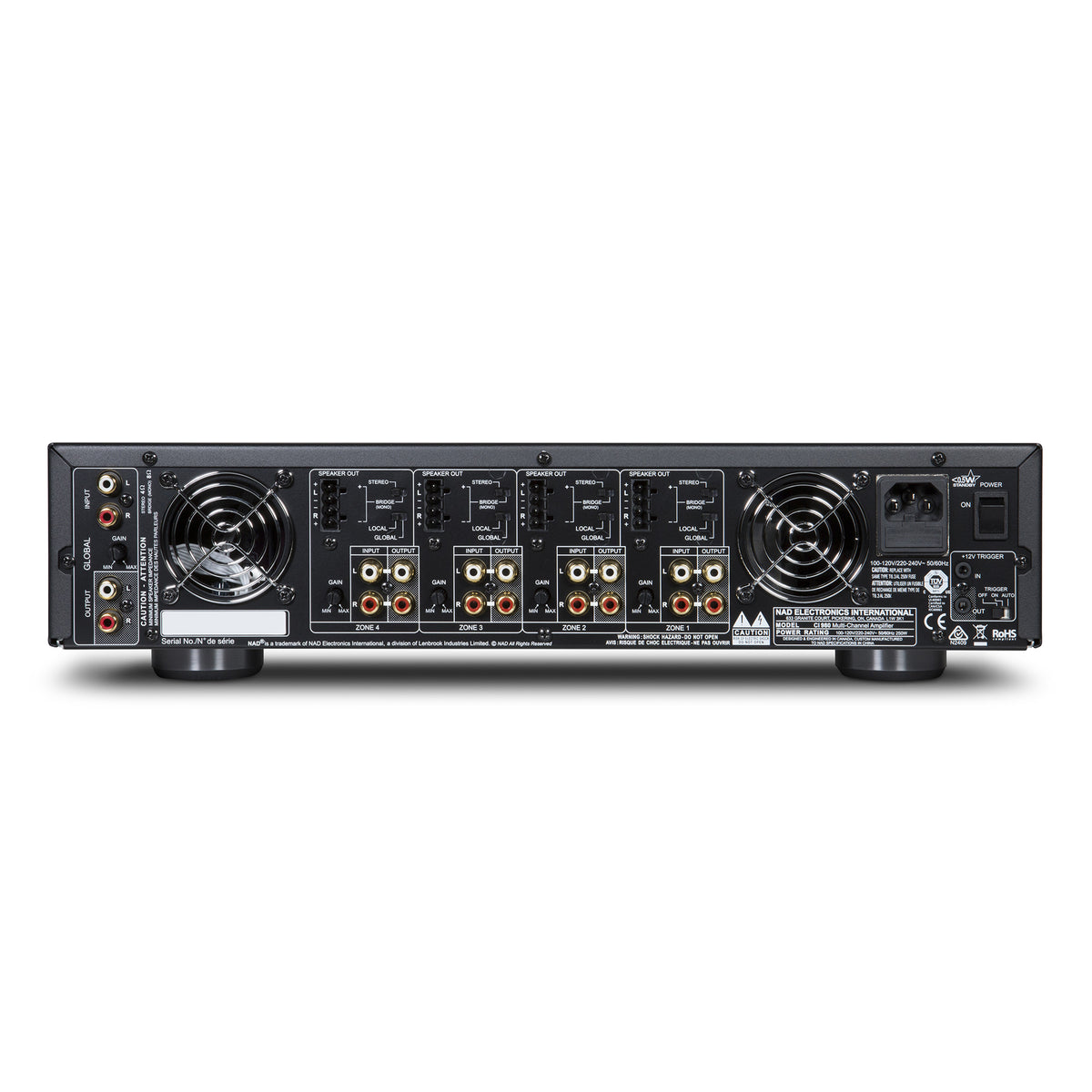

| Phoenix speaker connection blocks | Detachable power cable for easy service and upgrades |
| Indicator lamps for each zone that show protection status and amplifier clipping | <0.5W standby consumption |
| <0.03% THD; <0.04% IMD (SMPTE, CCIR) | >86dBA referenced to 1W |
Overall Specifications |
|
| 8 Ohms | 8 x 50W (ref. rated THD, 20Hz-20Hz, all channels driven) |
| 4 Ohms | 8 x 60W |
| 8 Ohms Bridge Mode | 120W |
| Rated THD (250mW to rated power, CCIF IMD, DIM 100) | <0.03% (ref. 20Hz-20kHz) |
| Clipping Power | >155W (ref. 1kHz, 8 Ohms, 0.1% THD) |
| Damping Factor | >150 (ref. 8 Ohms, 50Hz and 1kHz) |
| Input Sensitivity | 1.1V (ref. rated power) |
| Voltage Gain | 33dB |
| Frequency Response | 20Hz-20kHz ±1dB |
| Signal/Noise Ratio, A-Weighted | >80dB (ref. 1W/8 Ohms) >100dB (ref. 50W) |
| Miniumu Input Signal to Trigger (auto sense mode) | >20mV |
| Time to Automatic Standby (without signal at input sense mode) | 10 minutes |
| Rated Power | 600W (120V 60Hz, 230V 50Hz) |
| Idle Power | <26W |
| Standby Power | <0.5W |
Weight & Dimensions |
|
| Gross Dimensions* (W x H x D) | 483 x 105 x 323mm (19 1/16 x 4 3/16 x 12 3/4”)** |
| Net Weight | 5.72kg (12.6lb) |
| Shipping Weight | 7.1kg (15.65lb) |
Technology |
|
| *Specifications subject to change without notice. | |
