C 556

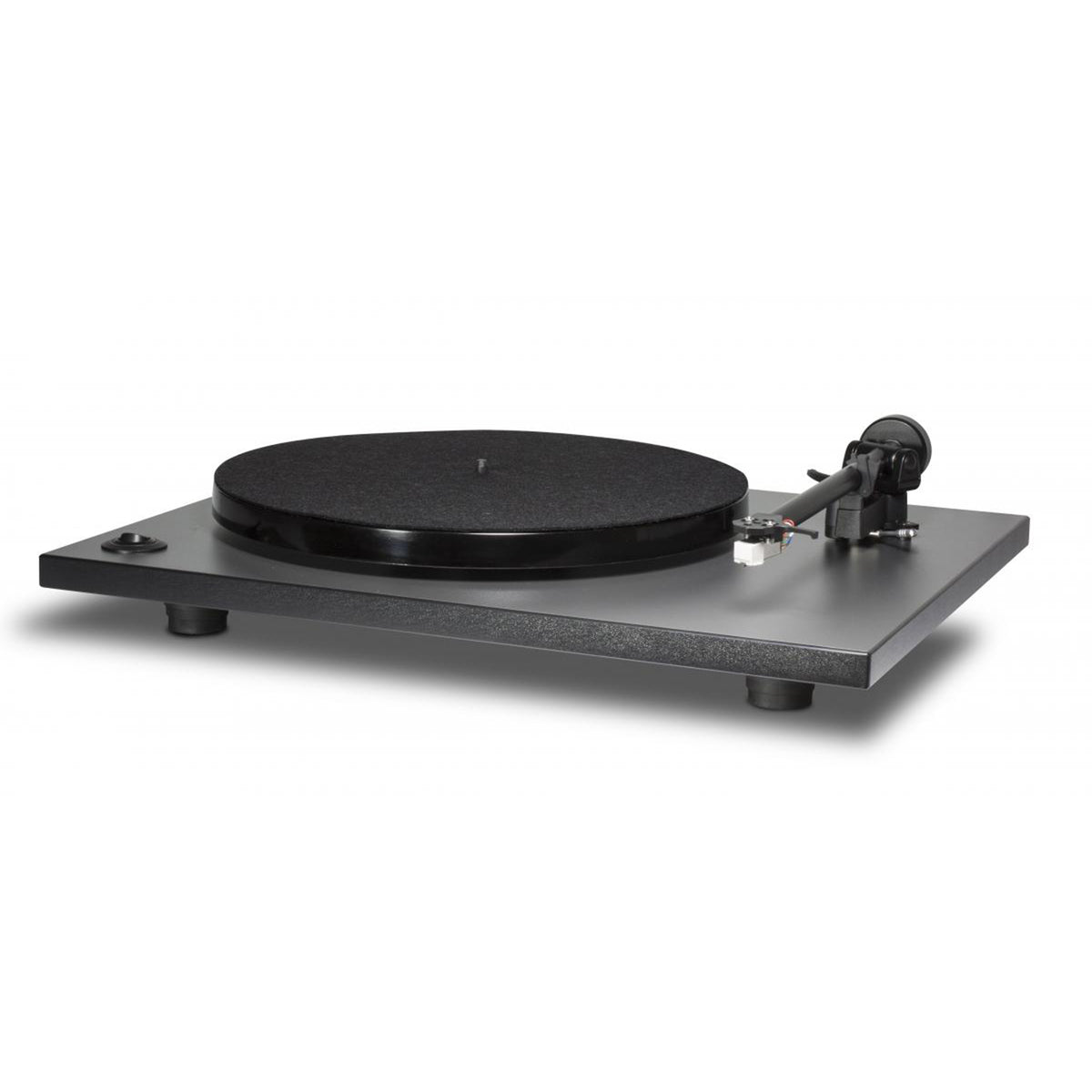

TURNTABLE
SPECIFICATIONS
| Specification | Details |
|---|---|
Turntable |
|
| Drive System | Belt drive |
| Motor | High torque synchronous |
| Speed | 33.3 and 45.1rpm |
| Suspension System | 3 energy absorbent synthetic rubber feet |
Tonearm |
|
| Operation | Manual |
| Length | 289mm total length; 244 mm pivot to stylus |
| Effective Mass | 9g |
| Overhang | 19.1mm |
| Cable capacitance | 150-400pF |
Cartridge Specifications |
|
| Output Voltage | 2.5mV at 1kHz |
| Tracking Force Recommended | 2g-3g |
| Cartridge Weight | 5g |
| Replacement Stylus | User replaceable |
Weight & Dimensions |
|
| Gross Dimensions* (W x H x D) (with dust cover down) | 447 x 115 x 360mm 17 3/8 x 4 9/16 x 14 3/16”** |
| Net Weight | 4kg (8.8lb) |
| Shipping Weight | 7kg (15.4lb) |
Technology |
|
| *Specifications subject to change without notice. | |
