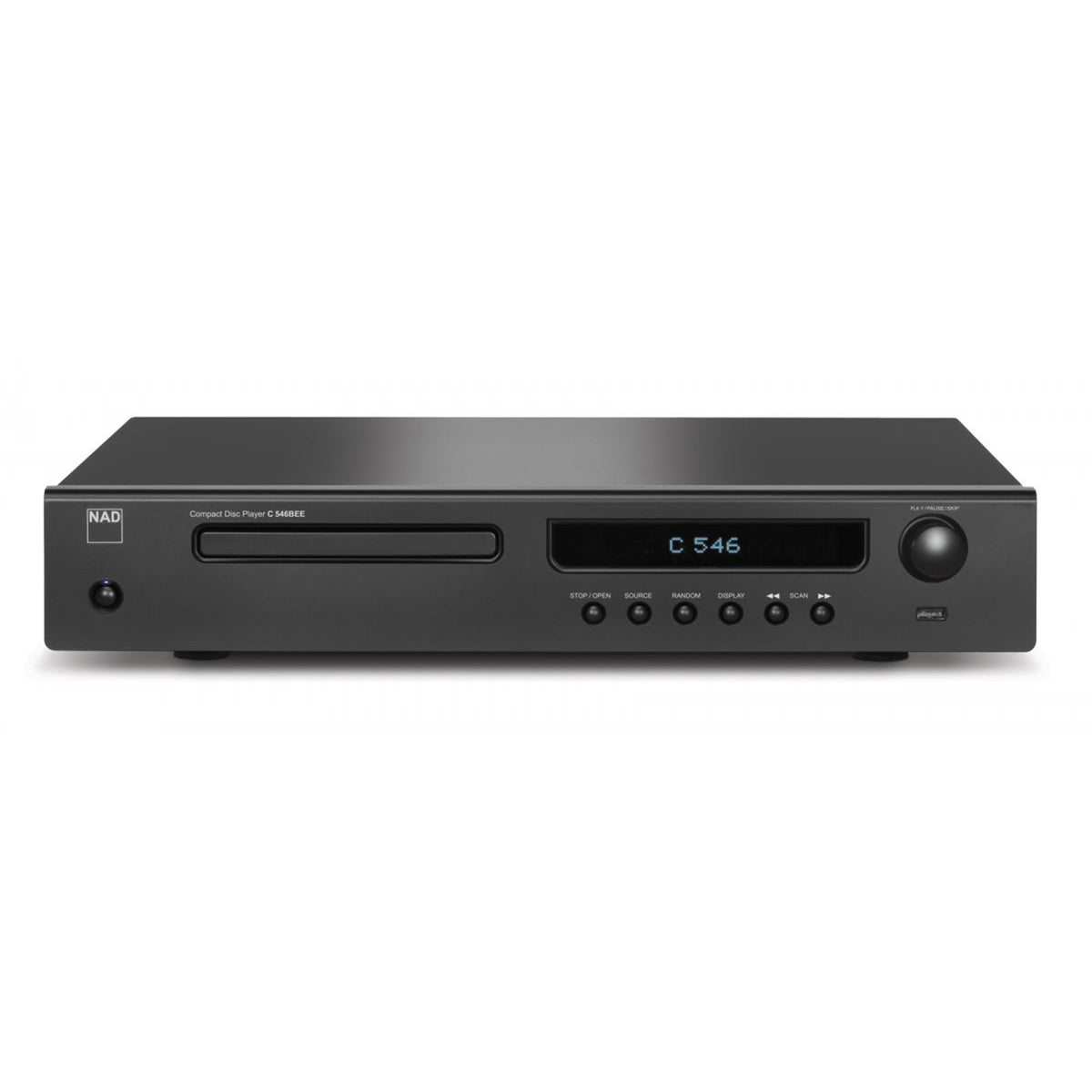

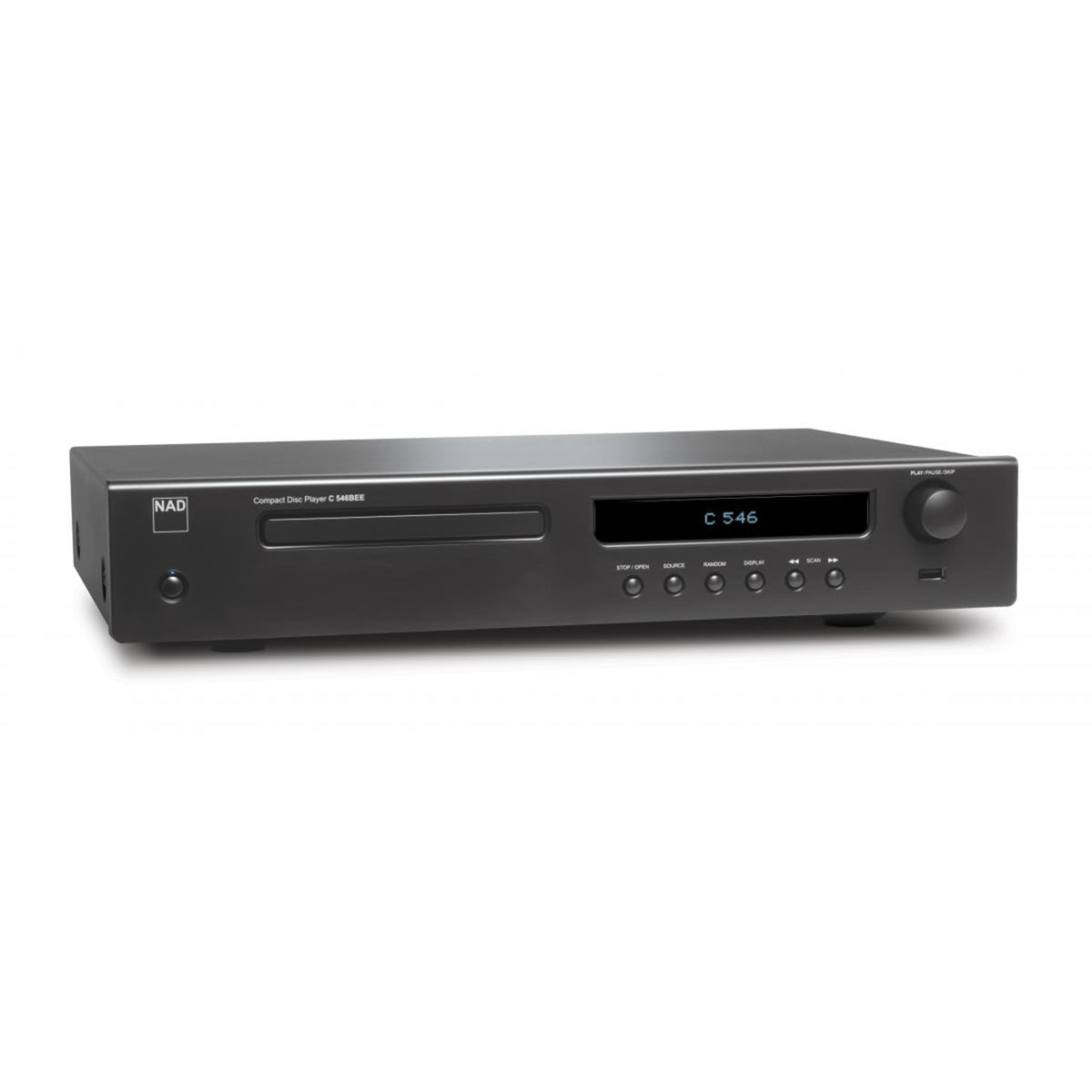

C 546BEE
CD PLAYER
SPECIFICATIONS
| Specification | Details |
|---|---|
Key Features |
|
| CD, CD-R and CD-RW Compatible | USB Input supports external memory and audio rates up to 384kbps |
| MP3 and WMA decoding | NAD CD-9 Remote Control |
| Wolfson 24-bit Digital-to-Analogue Converter | Coaxial/Optical Digital Output |
| Low Output Impedance | Toroid Power supply with Separate Power Regulators for Analogue and Digital Sections |
| VFL Display with CD text | Selectable Track, Time and Repeat |
| Repeat Mode for Single Track or Entire CD | Program Play up to 20 Tracks |
| Random Play | External IR Input |
| 12V Trigger Input | <0.5 watt Standby consumption |
General Specifications |
|
| Analogue | 2.2 ±0.2V |
| Optical | -22.5 ±3.5dBm |
| Coaxial | 650 ±150mV |
| Frequency Response | ±0.3dB (ref. 0dB 20Hz-1kHz ±0.5dB (ref. 0dB 5Hz-20kHz |
| Total Harmonic Distortion | 0.01% (ref. 1kHz, Audio LPF) |
| Signal/Noise Ratio | 118dB (ref. 1kHz, A-weighted LPF Stop, Pause) |
| Channel Balance | ±0.5dB (ref. 0dB 1kHz) |
| Dynamic Range | 95dB |
| Channel Separation | >90dB |
| De-emphasis | -3.73 to -5.336dB (ref.0dB 1kHz, 5kHz) -8.04 to -10.04dB (ref. 0dB 1kHz, 16kHz) |
| Linearity | ±0.01dB (ref. 0dB 1kHz at -3dB) ±0.02dB (ref. 0dB 1kHz at -6dB) ±0.02dB (ref. 0dB 1kHz at -10dB) ±0.05dB (ref. 0dB 1kHz at -20dB) ±0.15dB (ref. 0dB 1kHz at -60dB) |
USB |
|
| Output level | 2.2 ±0.2V |
| Frequency Response | ±1dB (ref. 0dB 20Hz - 16kHz) |
| Total Harmonic Distortion | <0.03% (ref. 0dB 1kHz, Audio LPF) |
| Signal/Noise Ratio | 118dB (ref. 1kHz, A-weighted Pause) |
Power Consumption |
|
| Standby Power | <0.5W (120V/230V) |
| Idle Power | 9W |
Weight & Dimensions |
|
| Gross Unit Dimensions* (WxHxD) | 435 x 89 x 306mm |
| Net Weight | 4.9kg (10.8lb) |
| Shipping Weight | 6.3kg (13.9lb) |
Technology |
|
| *Specifications subject to change without notice. | |
