KEY FEATURES
4 story sections available. Tab to navigate.
Story section 1 of 4.Contains an image.Press Tab to navigate to next section.

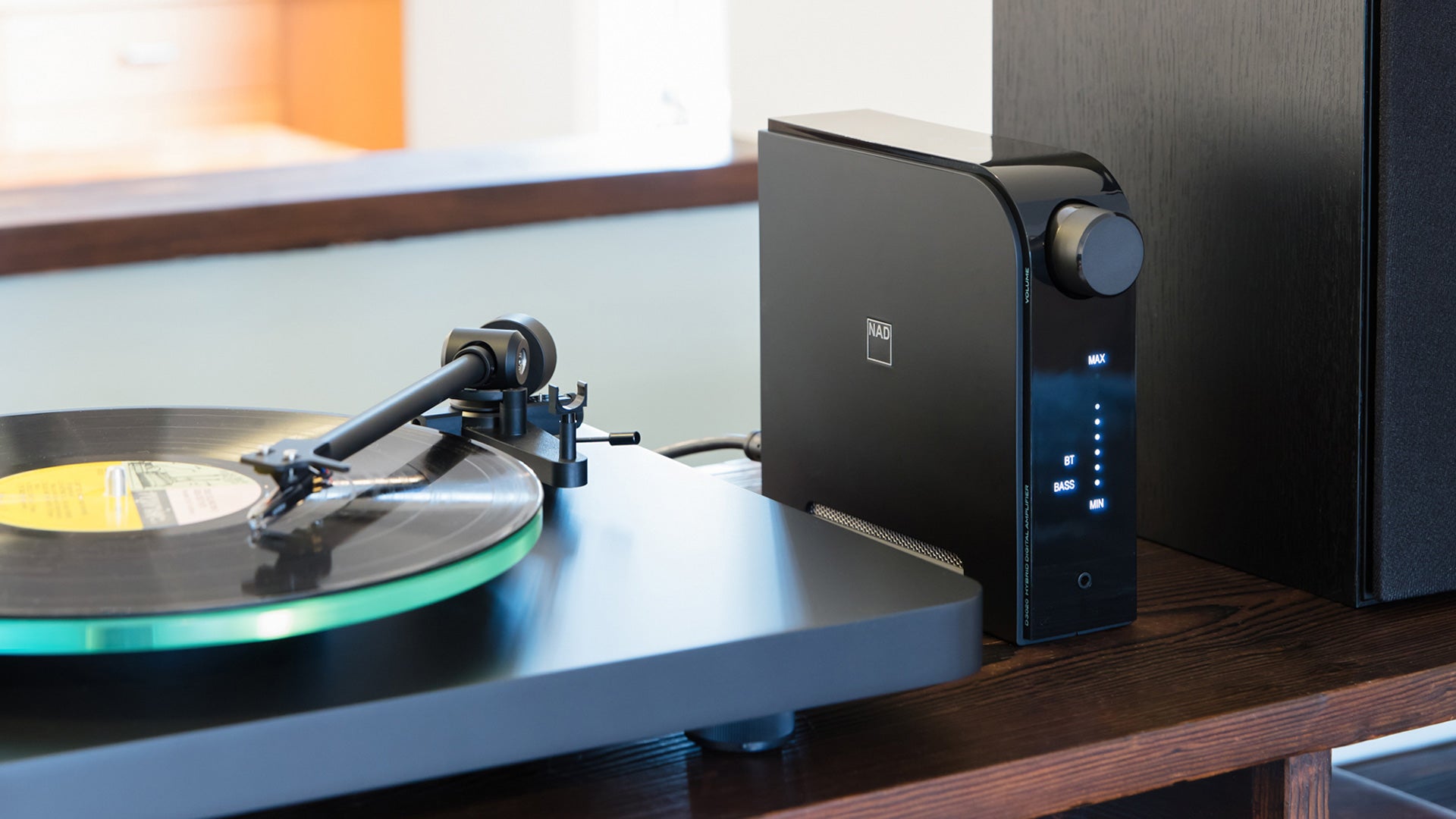

Compact Design, Big Listening Experience (Section 1 of 4)
The D 3020 V2 is designed for smaller hi-fi, TV, and desktop systems where space is limited but sound quality still matters. Its compact form makes it easy to integrate into a home office or workstation setup without sacrificing performance. More importantly, the D 3020 V2 delivers a sound that feels full and engaging, helping compact systems sound more confident and satisfying than expected.
Section 1 of 4
Story section 2 of 4.Contains an image.Press Tab to navigate to next section.

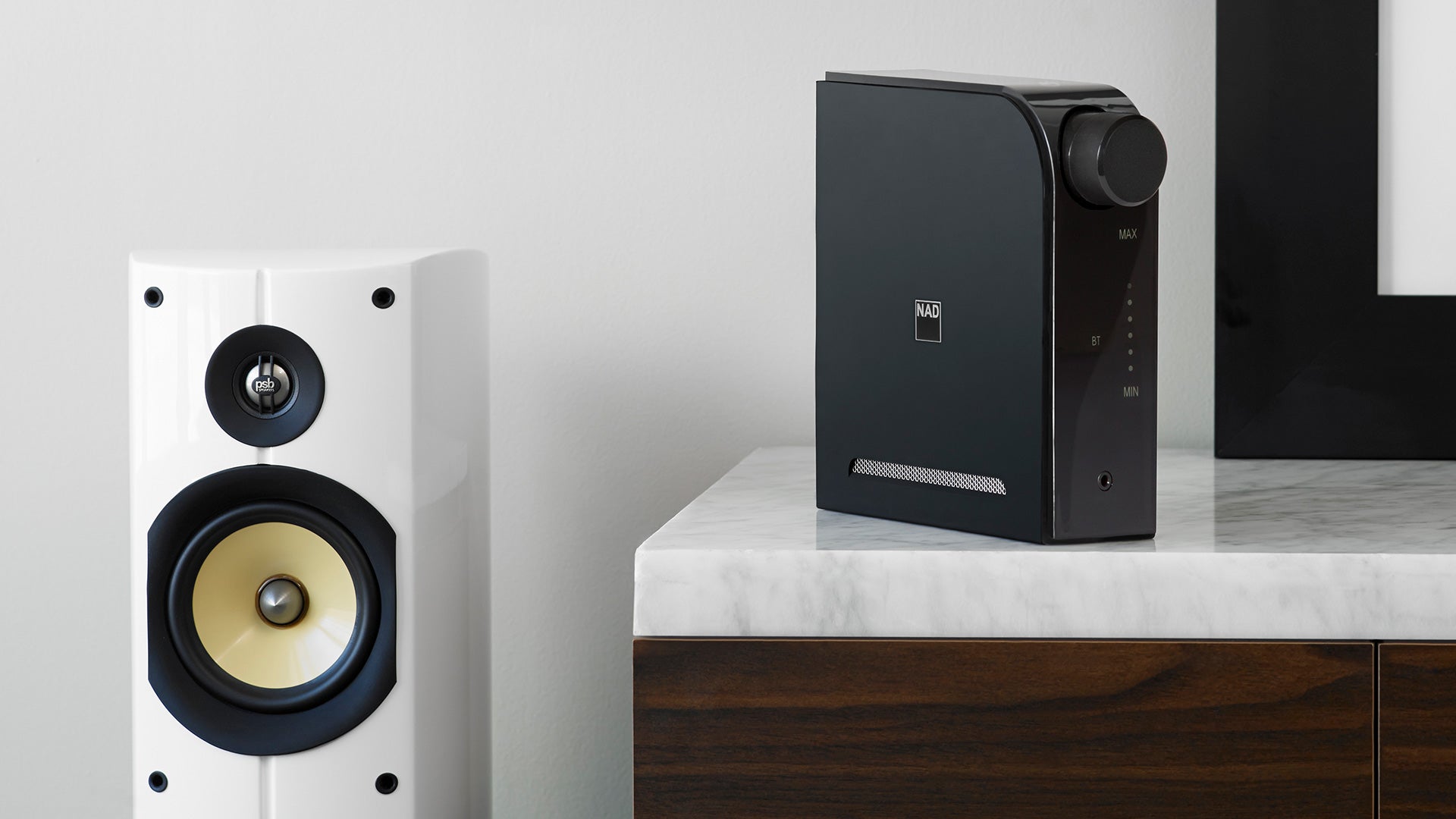

Confident, Musical Power (Section 2 of 4)
With 30 watts per channel of HybridDigital amplification supported by NAD PowerDrive™, the D 3020 V2 delivers a sound that is warm, controlled, and expressive. It can comfortably drive a wide range of compact and medium-sized loudspeakers, maintaining clarity and balance as music becomes more dynamic. This gives both music and TV sound a greater sense of detail and presence.
Section 2 of 4
Story section 3 of 4.Contains an image.Press Tab to navigate to next section.

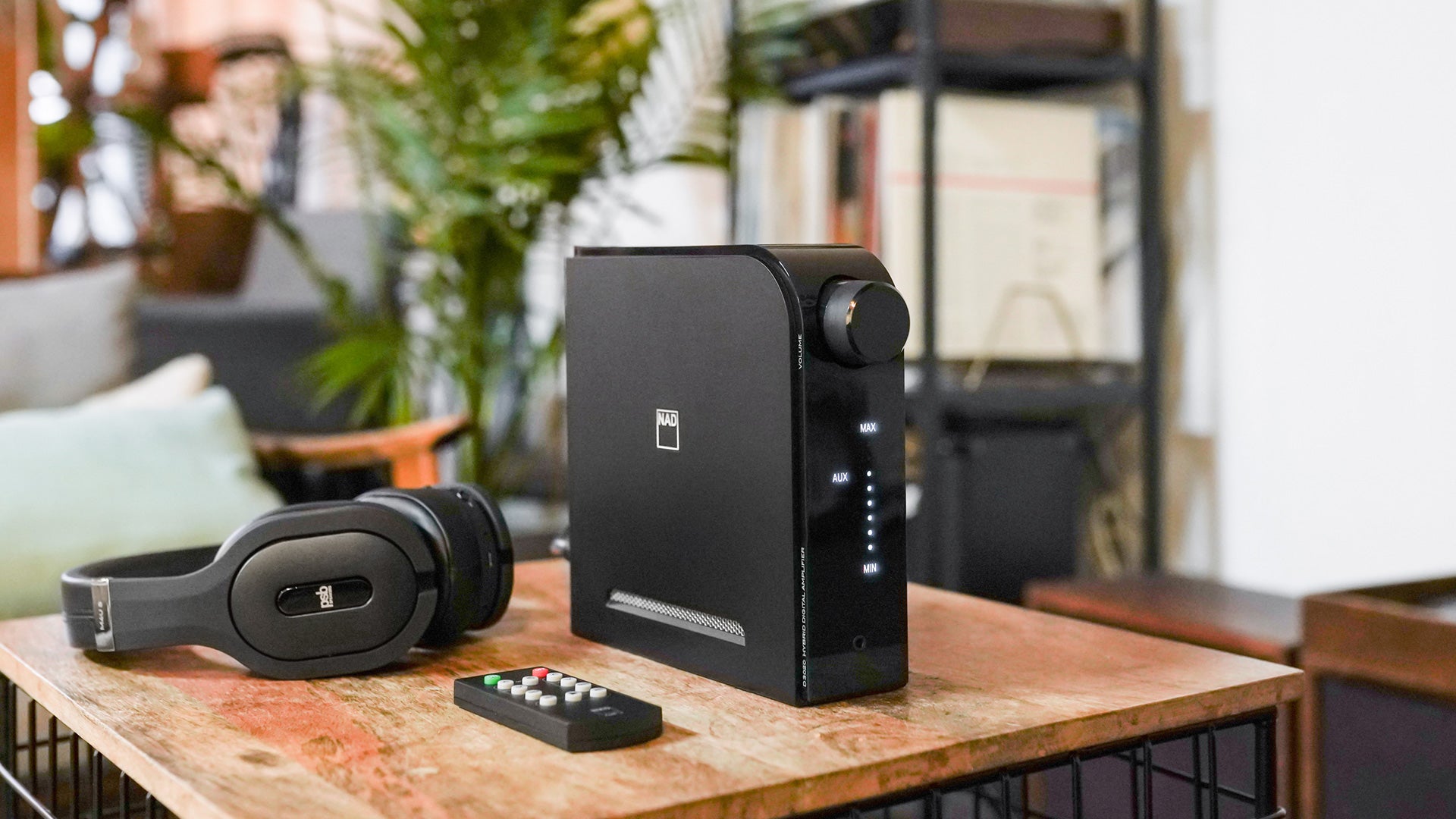

Flexible Listening for Music and TV (Section 3 of 4)
The D 3020 V2 is built to support everyday listening across multiple sources. Bluetooth with aptX® makes it easy to play music directly from a phone, tablet, or laptop, while optical and coaxial inputs allow clean, improved sound from a television or digital source. A built-in MM phono stage also brings vinyl into the same system, making it simple to move between music formats without changing equipment.
Section 3 of 4
Story section 4 of 4.Contains an image.Press Tab to navigate to next section.

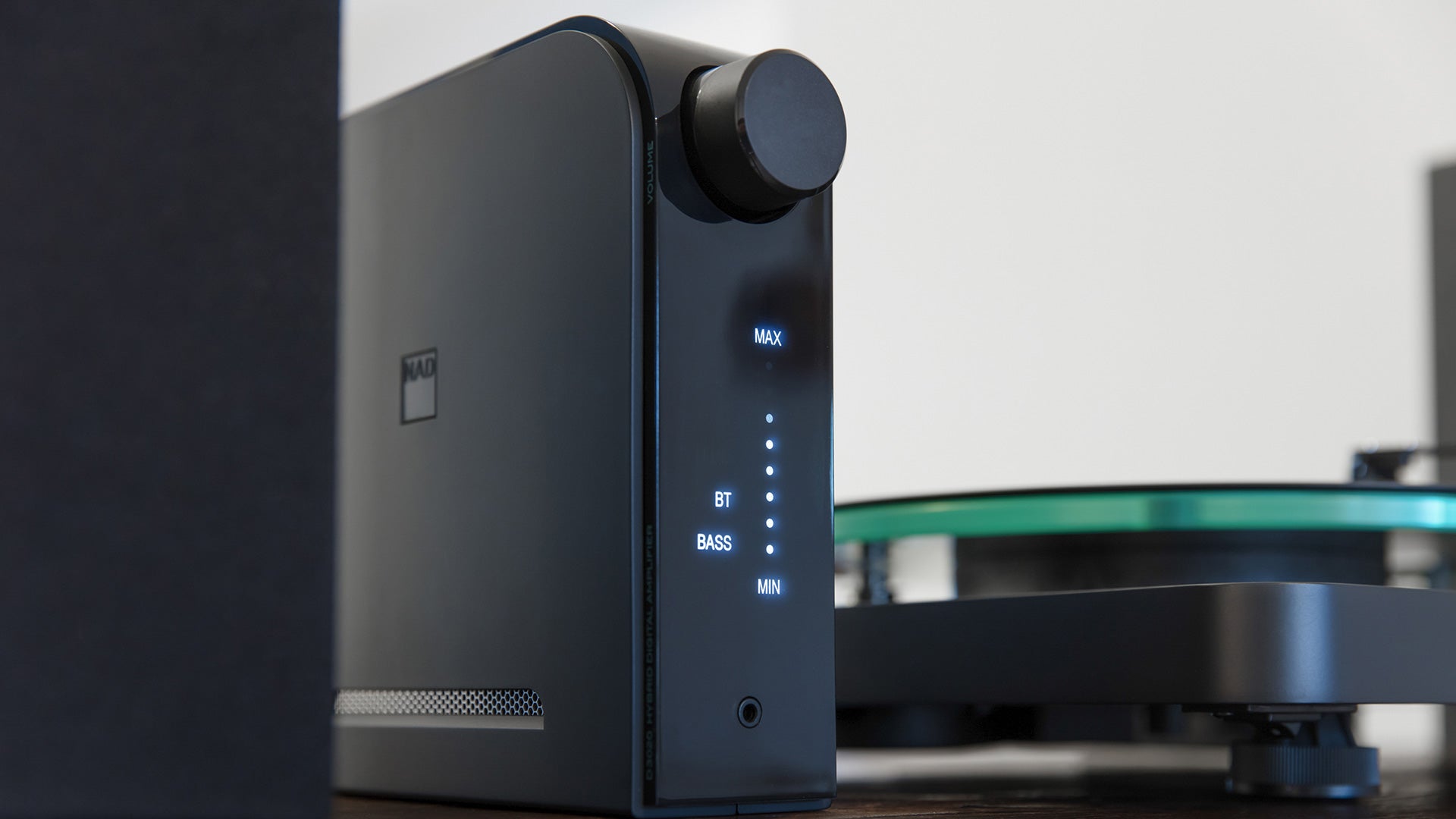

Designed for Smaller Hi-Fi Systems (Section 4 of 4)
Features such as Bass EQ, soft clipping, and a pre-out connection help the D 3020 V2 work well with compact speakers and real-world room sizes. These refinements allow music and dialogue to sound fuller and more controlled at typical listening levels, without strain or harshness. The result is a small system that feels easier to listen to, more enjoyable over time, and better suited to everyday use.
Section 4 of 4
SPECIFICATIONS
| Specification | Details |
|---|---|
Audio Specs |
|
| Rated Power at 8 ohms | 2 x 30 Watts |
| IHF Dynamic Power 8 ohms | 2 x 60 Watts |
| 4 ohms | 2 x 100 Watts |
| 2 ohms | 2 x 150 Watts |
| Signal/Noise Ratio (A-weighted, ref. 1 Watt) | ≥90dB |
| Channel Separation 1kHz | ≥75dB |
| 10kHz | ≥65dB |
| Channel Balance | 0 ±0.3dB |
| Frequency Response (20Hz - 20kHz) | 0dB to -0.3dB |
| Total Harmonic Distortion | ≤0.005% |
| Maximum input level | 5V |
| IMD (SMPTE) | 0.02% |
| IMD (CCIF) | 0.003% |
MM Phono Input |
|
| Phono Signal-to-Noise Ratio | >82 dB (200 ohms source, A-weighted, ref. 500 mV out) 76 dB (MM cartridge source, IHF; A-weighted, ref. 500 mV out) |
| Input sensitivity | 1.15 mV (ref. 500 mV out, Volume maximum) |
| Maximum input signal at 1kHz | >90 mVrms (ref. 0.1 % THD) |
| Frequency response | ±0.3 dB (20 Hz - 20 kHz) |
General |
|
| Standby Power | ≤0.5 Watts |
| Supports bit rate/sample rate | up to 24/192 (via Digital Audio input) |
| Unit Dimensions (W x H x D) Gross | 58 x 186 x 219mm |
| Net Weight | 1.38kg (3.05lb) |
| Shipping Weight | 2.1kg (4.6lb) |
Technology |
|
| *Specifications subject to change without notice. | |
