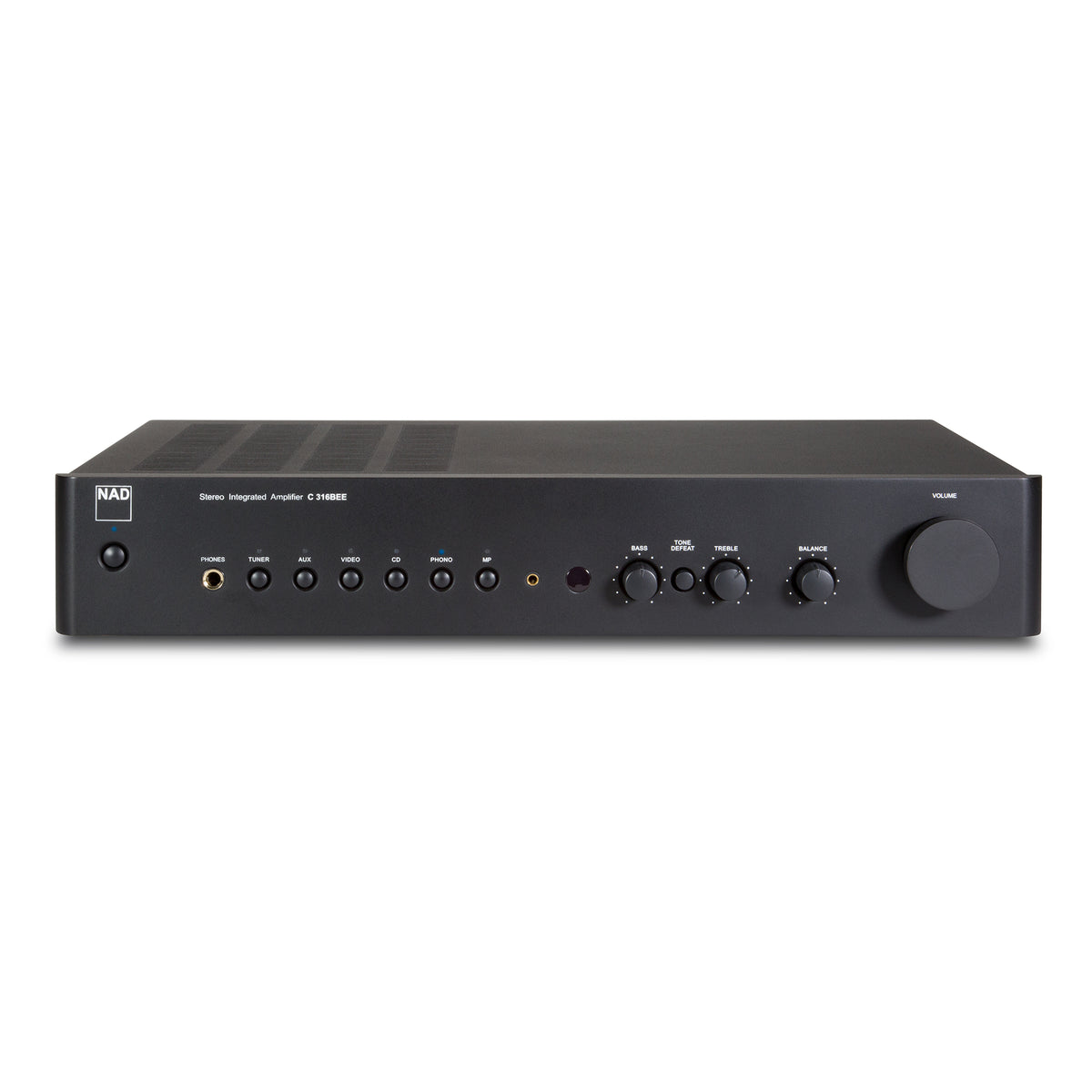

C 316BEE V2
STEREO INTEGRATED AMPLIFIER
- Regular Price
- $499.00
Sold Out
SPECIFICATIONS
| Specification | Details |
|---|---|
Line In / Headphone Out |
|
| THD (20 Hz – 20 kHz) | <0.03 % in 300 ohms at 2 V out |
| Signal-to-Noise Ratio | >100 dB (A-weighted, 32 ohms, ref. 2V out, unity gain) |
| Frequency response | ±0.3 dB (20 Hz - 20 kHz) |
| Output impedance | 8 ohms |
Line In / Speaker Out |
|
| Continuous output power into 8 ohms and 4 ohms | THD (20 Hz – 20 kHz) |
| Signal-to-Noise Ratio | >95 dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms) >97 dB (A-weighted, 500 mV input, unity gain in 32 ohms) |
| Clipping power (at 1 kHz 0.1 % THD) | >45 W in 8 ohms >60 W in 4 ohms |
| IHF dynamic power | 8 ohms: 90 W 4 ohms: 120 W 2 ohms: 170 W |
| Damping factor | >200 (ref. 8 ohms, 1 kHz) |
| Frequency response | ±0.3 dB (20 Hz - 20 kHz, Tone Defeat ON) Treble: ± 5dB at 10 kHz Bass: ± 8 dB at 100 Hz |
| Channel separation | >70 dB (1 kHz) |
| Maximum input level | 4.3V (1 kHz THD 0.1%) |
| Input sensitivity (for 40 W in 8 ohms) | 200 mV |
| Standby power | <0.5 W |
Phono In / Speaker Out |
|
| THD (20 Hz – 20 kHz) | <0.03 % (1 W to 40 W, 8 ohms and 4 ohms) |
| Signal-to-Noise Ratio | >75 dB with IHF MM cartridge (A-weighted, ref. 5mV input 1 kHz and 1W output in 8 ohms) |
| Frequency response (RIAA deviation) | +0.3 dB (20 Hz - 20 kHz, Tone Defeat ON) |
| Maximum input level | 71 mV (1 kHz THD 0.1%) |
| Input sensitivity (for 40 W in 8 ohms | 2.95 mV |
Dimension and Weight |
|
| Gross dimensions (W x H x D) | 17 1/8 x 3 9/16 x 11 1/4 inches 435 x 90 x 285 mm |
| Net weight | 5.5 kg (12.1 lbs) |
| Shipping weight | 6.4 kg (14.1 lbs) |
| *Specifications subject to change without notice. | |
